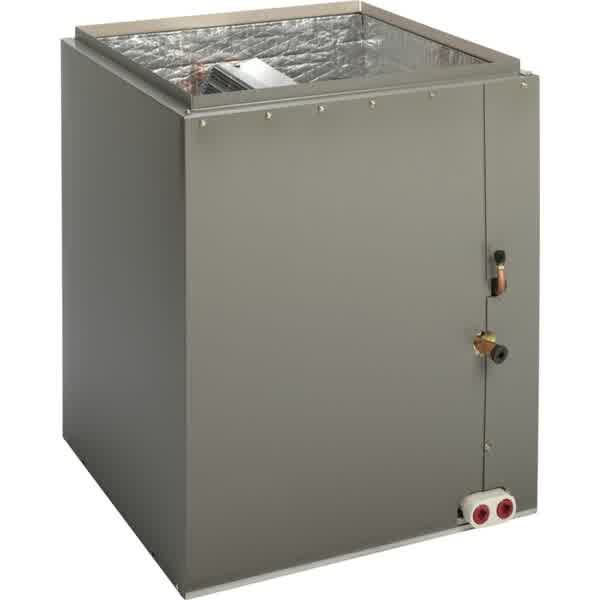

Lennox CK40CT-30/36B-01 17.5" Width 36,000 BTU Coil
Lennox CK40CT-30/36B-01 17.5" Width 36,000 BTU Coil
SKU:CK40CT-30/36B-01
In stock
Cased upflow R-410A coil for 2.5 to 3 ton systems that fits 17.5-inch B cabinet Lennox furnaces. Call (913) 364-0070 to confirm your match.
- Fast shipping
- Expert phone help
- Manufacturer warranty
- AHRI-matched pairings
- Licensed startup required
Couldn't load pickup availability
We Accept
Shop by size and efficiency
Outdoor units in the same size
Shipping policy
Free shipping on major equipment from our Kansas City warehouse to every state and D.C. except Alaska, Hawaii, Washington, Oregon, and Idaho, where you pay the shipping rate shown at checkout. If your cart has a qualifying item, your whole order ships free. Most orders ship 2–5 business days; delivery 2–10 days. Small packages UPS/FedEx; large HVAC = LTL curbside + liftgate typical. Signature/appointment for freight; inspect before signing. Call (913) 364-0070 for help.
Returns and refunds
30-day return window from receipt; unused/original packaging + proof of purchase. Start return via info@hvacusa.store or (913) 364-0070 before shipping back to 9411 N Tracy Ave, Kansas City, MO 64155. Sale items/gift cards/custom not returnable. Approved refunds to original payment within ~10 business days after inspection.
About The Lennox CK40CT-30/36B-01
Description
The Lennox CK40CT-30/36B-01 is a cased upflow evaporator coil for 2.5 to 3 ton R-410A systems, with a factory-installed R-410A expansion valve. It fits a 17.5-inch B cabinet Lennox furnace.
Key specs
- Capacity: 2.5 to 3 tons nominal
- Refrigerant: ships with an R-410A expansion valve and is R-454B compatible
- Cabinet: B size, 17.5 inches wide
- Connections: 3/4-inch suction and 3/8-inch liquid, sweat, plus two 3/4-inch FPT condensate drains on an anti-microbial drain pan
- Construction: Lennox Quantum coil with aluminum tubing and ripple-edged aluminum fins
Reading the model number
The first C means indoor coil, K means R-454B compatible, and 40 is the Quantum coil series. The C after 40 is the upflow cased cabinet, T is the factory expansion valve, 30/36 is the 2.5 to 3 ton size, B is the 17.5-inch cabinet that matches B furnaces, and 01 means an R-410A expansion valve is installed. You may also see it written as CK40CT-30-36B-01.
What it pairs with
It lines up with Lennox furnaces that carry the B cabinet letter. As shipped, it's set up for R-410A. The air conditioners and heat pumps we sell use R-454B, so pairing it with one needs Lennox's R-454B expansion valve and refrigerant detection parts, ordered separately.
Sizing and fit
Choose the size to match your outdoor unit's tonnage, and the cabinet letter to match your furnace. Have your outdoor unit's model number ready when you call, and we'll check it against Lennox's AHRI matchups.
Warranty and registration
HVAC USA is an authorized Lennox reseller, and everything we sell is new factory equipment. Your full Lennox warranty applies when a licensed, manufacturer-certified contractor installs your system and registers it within 60 days.
Shipping and help
It ships from our Kansas City warehouse. Call (913) 364-0070, Monday to Friday, 9am to 5pm CST, and we'll help you confirm sizing and an AHRI-matched pairing before you order.
Paired With — AHRI-matched systems for Lennox CK40CT-30/36B-01 17.5" Width 36,000 BTU Coil
AHRI-matched equipment that works with this unit. Add a full system or individual pieces.
Filter matches
Coil
EL22KCV-036-230
AHRI number 217885614
EL22KCV-024-230
AHRI number 217885226
EL22KCV-024-230
AHRI number 217885228
EL22KCV-024-230
AHRI number 217885219
EL22KCV-024-230
AHRI number 217885229
EL22KCV-036-230
AHRI number 217885617
EL22KCV-036-230
AHRI number 217885620
EL22KCV-024-230
AHRI number 217885227
EL22KCV-024-230
AHRI number 217885220
EL22KCV-036-230
AHRI number 217886054
EL22KCV-036-230
AHRI number 217886055
EL22KCV-036-230
AHRI number 217886140
EL22KCV-036-230
AHRI number 217886115
EL22KCV-036-230
AHRI number 217885628
EL22KCV-024-230
AHRI number 217885508
EL22KCV-024-230
AHRI number 217885495
EL22KCV-024-230
AHRI number 217885221
EL22KCV-024-230
AHRI number 217885222
EL22KCV-024-230
AHRI number 217885223
No AHRI-matched systems for this filter.
Specifications
| Specification | Value |
|---|---|
| Manufacturer | Lennox |
| SKU | CK40CT-30/36B-01 |
| Product type | Evaporator Coil |
| Coil width | 17.5" |
| Capacity (BTU) | 36,000 |
| Refrigerant | R-410A |
| Cabinet width (in) | 17.5 |
| Cabinet size letter | B |
| Also listed as | CK40CT-30-36B-01 |
