About The Lennox CBK45UHVT-036-230-71
Description

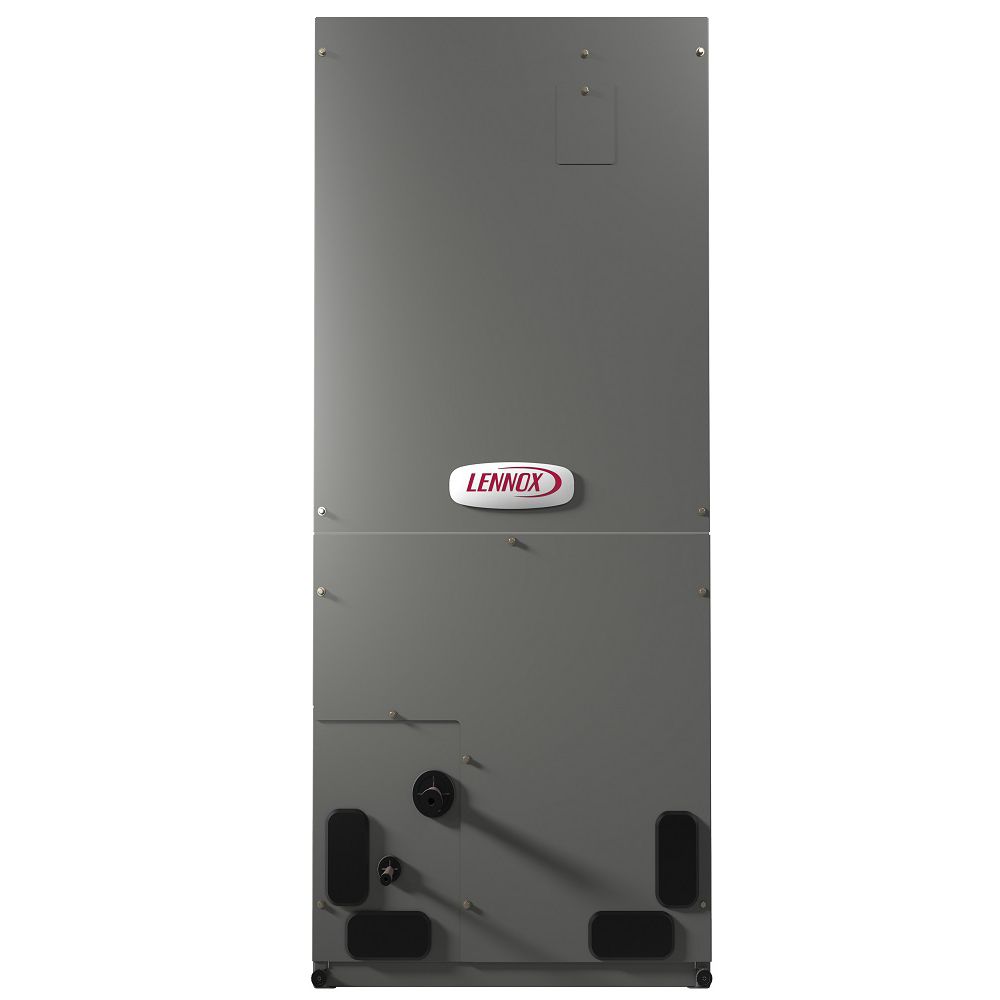

The Lennox CBK45UHVT-036-230-71 is a 3 ton Merit Series air handler for R-454B systems, with a variable-speed blower and an R-454B check/expansion valve installed at the factory. It comes in a 21.5-inch wide cabinet that ships ready for upflow or horizontal installs.
Key specs
- Capacity: 3 tons (36,000 BTU)
- Blower: 1/2 hp variable-speed motor, 545 to 1,530 cfm
- Connections: 3/8-inch liquid and 7/8-inch suction, sweat, plus two 3/4-inch FPT drains
- Filter: 18 x 20 x 1 inch
- Shipping weight: 169 lb
- Coil: Lennox Quantum coil with aluminum tubing and ripple-edged aluminum fins
Reading the model number
CB is an air handler, K is R-454B, and 45 is the Quantum coil series. UH is upflow/horizontal, V is the variable-speed motor, and T is the factory check/expansion valve. 036 is 3 tons, 230 is 208/230V single-phase, and 71 means an R-454B valve is installed.
What it pairs with
The AHRI Directory lists it with these Lennox units we sell: EL15KC1, EL16KC1, EL18KCV, EL22KCV, ML13KC1, ML14KC1, and ML17KC2 air conditioners and EL16KP1, EL18KSLV, EL19KPV, EL21KLV, and ML14KP1 heat pumps. Listed ratings run from 13.8 to 20.75 SEER2, and the best match is the EL22KCV-024-230 air conditioner.
For electric heat, Lennox lists ECB45 heaters from 4 to 15 kW for this size: 4, 5, 7.5, and 10 kW with a terminal block or a circuit breaker; 12.5 and 15 kW with a circuit breaker.
Sizing and fit
Downflow needs Lennox's Y9659 downflow kit, and horizontal left-hand discharge needs the horizontal drain pan moved. Match the air handler to your outdoor unit's tonnage.
Warranty and registration
HVAC USA is an authorized Lennox reseller, and everything we sell is new factory equipment. Your full Lennox warranty applies when a licensed, manufacturer-certified contractor installs your system and registers it within 60 days.
Shipping and help
This item ships free from our Midwest warehouse to the lower 48 states and D.C., and so does the rest of your order, except to Washington, Oregon, and Idaho, where you pay the shipping rate shown at checkout. For Alaska, Hawaii, Puerto Rico, other U.S. territories, or an APO or FPO address, call or text us for a quote. Call (913) 364-0070, Monday to Friday, 9am to 5pm CST, and we'll help you confirm sizing and an AHRI-matched pairing before you order.
Paired With — AHRI-matched systems for Lennox CBK45UHVT-036-230-71 21.5" Width 36,000 BTU Air Handler
AHRI-matched equipment that works with this unit. Add a full system or individual pieces.
Filter matches
Coil
ML14KC1-030-230
AHRI number 215581106
ML14KC1-036-230
AHRI number 215582261
ML14KC1-041-230
AHRI number 215583193
ML14KC1-042-230
AHRI number 215583844
ML13KC1-024-230
AHRI number 215584455
ML13KC1-042-230
AHRI number 215585863
ML13KC1-030-230
AHRI number 215586441
ML13KC1-036-230
AHRI number 215587019
EL16KC1-024-230
AHRI number 215658455
EL16KC1-030-230
AHRI number 215659332
EL16KC1-036-230
AHRI number 215660525
EL16KC1-041-230
AHRI number 215661383
EL16KC1-042-230
AHRI number 215662034
EL15KC1-024-230
AHRI number 215663048
EL15KC1-030-230
AHRI number 215663602
EL15KC1-036-230
AHRI number 215664354
EL15KC1-042-230
AHRI number 215665806
ML14KP1-030-230
AHRI number 215712354
EL16KP1-030-230
AHRI number 215712604
Loading pairings
Those pairings didn't load. Try again.
No AHRI-matched systems for this filter.
Select a Heat Kit (Optional)
Optional — not required for AHRI certification.
Specifications
| Specification | Value |
|---|---|
| Manufacturer | Lennox |
| SKU | CBK45UHVT-036-230-71 |
| Product type | Air Handler |
| Air handler type | Variable Speed |
| Capacity (tons) | 3 |
| Capacity (BTU) | 36,000 |
| Voltage | 208/230 |
| Phase | 1 |
| Frequency (Hz) | 60 |
| Electrical | 208/230-1-60 |
| Height (in) | 53.625 |
| Depth (in) | 22 |
| Shipping weight (lb) | 169 |
| Refrigerant | R-454B |
| Cabinet width (in) | 21.5 |
