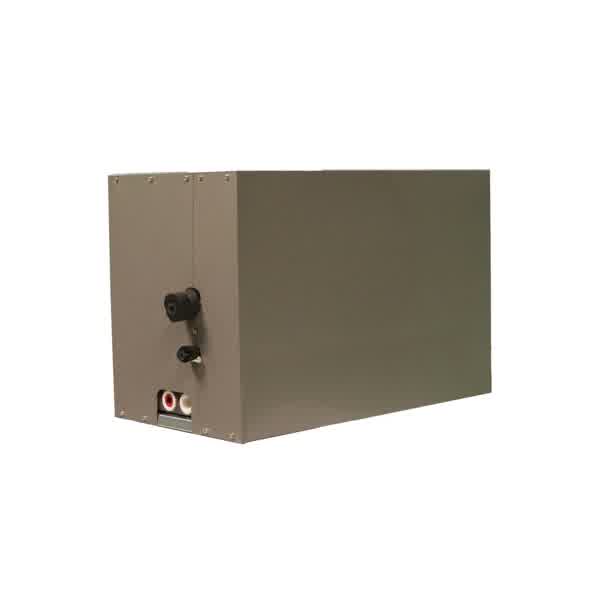

Lennox CK40DT-48C-71 21" Width 48,000 BTU Coil

Lennox CK40DT-48C-71 21" Width 48,000 BTU Coil

CK40DT-48C-71

In stock

  • Lennox CK40DT-48C-71 21" Width 48,000 BTU Coil

Cased downflow R-454B coil for 4 ton systems that fits 21-inch C cabinet Lennox furnaces. Call (913) 364-0070 to confirm your match.

  • Fast shipping
  • Expert phone help
  • Manufacturer warranty
  • AHRI-matched pairings
  • Licensed startup required
$1,771.64
$1,771.64
Sale Sold out
Shipping calculated at checkout.
Call Text

We Accept

  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Shop by size and efficiency

Outdoor units in the same size

View full details

About The Lennox CK40DT-48C-71

The Lennox CK40DT-48C-71 is a cased downflow evaporator coil for 4 ton R-454B systems, with a factory-installed R-454B expansion valve. It fits a 21-inch C cabinet Lennox furnace.

Key specs

  • Capacity: 4 tons nominal
  • Refrigerant: R-454B only, with a refrigerant detection sensor installed at the factory
  • Cabinet: C size, 21 inches wide
  • Connections: 7/8-inch suction and 3/8-inch liquid, sweat, plus two 3/4-inch FPT condensate drains on an anti-microbial drain pan
  • Construction: Lennox Quantum coil with aluminum tubing and ripple-edged aluminum fins

Reading the model number

The first C means indoor coil, K means R-454B, and 40 is the Quantum coil series. The D after 40 is the downflow cased cabinet, T is the factory expansion valve, 48 is the 4 ton size, C is the 21-inch cabinet that matches C furnaces, and 71 means R-454B only.

What it pairs with

It lines up with Lennox furnaces that carry the C cabinet letter. The AHRI Directory lists it with these Lennox units we sell: EL15KC1, EL16KC1, EL18KCV, EL22KCV, ML13KC1, ML14KC1, and ML17KC2 air conditioners and EL16KP1, EL18KSLV, EL19KPV, EL21KLV, and ML14KP1 heat pumps. The best listed match we carry is the EL21KLV-048-230 heat pump on an SL280DF090V60C furnace, at 20.5 SEER2.

Sizing and fit

Choose the size to match your outdoor unit's tonnage, and the cabinet letter to match your furnace. If your furnace has no built-in RDS mitigation control, it needs Lennox's RDS blower control board, ordered separately. Have your outdoor unit's model number ready when you call, and we'll check it against Lennox's AHRI matchups.

Warranty and registration

HVAC USA is an authorized Lennox reseller, and everything we sell is new factory equipment. Your full Lennox warranty applies when a licensed, manufacturer-certified contractor installs your system and registers it within 60 days.

Shipping and help

It ships from our Kansas City warehouse. Call (913) 364-0070, Monday to Friday, 9am to 5pm CST, and we'll help you confirm sizing and an AHRI-matched pairing before you order.

Paired With

AHRI-matched equipment that works with this unit. Add a full system or individual pieces.

Filter matches

EL21KLV-048-230

SEER2 20.5

AHRI number 217443392

SEER
20.5
EER
12
HSPF
8.2
Cooling
47000
Heating
50000
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL21KLV-048-230

SEER2 20.5

AHRI number 217443394

SEER
20.5
EER
12
HSPF
8.2
Cooling
47000
Heating
50000
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL21KLV-048-230

SEER2 20.5

AHRI number 217443401

SEER
20.5
EER
11.7
HSPF
8.2
Cooling
46500
Heating
50500
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL21KLV-048-230

SEER2 20.5

AHRI number 217443403

SEER
20.5
EER
11.7
HSPF
8.2
Cooling
46500
Heating
50500
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL21KLV-048-230

SEER2 20.5

AHRI number 217443404

SEER
20.5
EER
11.7
HSPF
8.2
Cooling
46500
Heating
50500
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-036-230

SEER2 19.25

AHRI number 217886227

SEER
19.25
EER
12.7
Cooling
34600
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL21KLV-048-230

SEER2 19

AHRI number 217443391

SEER
19
EER
11.7
HSPF
8
Cooling
47000
Heating
50500
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-036-230

SEER2 18.75

AHRI number 217886223

SEER
18.75
EER
13
Cooling
34400
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-036-230

SEER2 18.75

AHRI number 217886226

SEER
18.75
EER
12.7
Cooling
34600
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-036-230

SEER2 18.75

AHRI number 217886244

SEER
18.75
EER
12.5
Cooling
34400
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-036-230

SEER2 18.75

AHRI number 217886245

SEER
18.75
EER
12.5
Cooling
34400
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-036-230

SEER2 18.75

AHRI number 217886224

SEER
18.75
EER
13
Cooling
34400
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-036-230

SEER2 18.75

AHRI number 217886127

SEER
18.75
EER
12.8
Cooling
34400
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-060-230

SEER2 18.75

AHRI number 217886801

SEER
18.75
EER
11.7
Cooling
54000
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-036-230

SEER2 18.25

AHRI number 217886242

SEER
18.25
EER
12.5
Cooling
34600
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-036-230

SEER2 18.25

AHRI number 217886225

SEER
18.25
EER
12.5
Cooling
34800
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL19KPV-048-230

SEER2 18

AHRI number 217507606

SEER
18
EER
11.5
HSPF
8.2
Cooling
48000
Heating
50500
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL19KPV-048-230

SEER2 18

AHRI number 217507605

SEER
18
EER
11.5
HSPF
8.2
Cooling
48000
Heating
50500
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL19KPV-048-230

SEER2 18

AHRI number 217507613

SEER
18
EER
11.2
HSPF
8.1
Cooling
48000
Heating
50500
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL19KPV-048-230

SEER2 18

AHRI number 217507612

SEER
18
EER
11.2
HSPF
8.1
Cooling
48000
Heating
48000
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

Specifications

Specification Value
Manufacturer Lennox
SKU CK40DT-48C-71
Product type Evaporator Coil
Coil width 21"
Capacity (tons) 4
Capacity (BTU) 48,000
Shipping weight (lb) 69
Refrigerant R-454B
Cabinet width (in) 21
Cabinet size letter C

Ordering

Detail Value
Lead time Ships from our Kansas City warehouse. Most in-stock items leave in 1 to 3 business days; special-order equipment is confirmed by phone before ship.
Freight note Ships residential freight (curbside). Will-call available at our Kansas City warehouse. Call (913) 364-0070 for liftgate, scheduling, or commercial delivery.

Documents

Spec sheet
