About The Lennox CK40DT-50/60C-01
Description

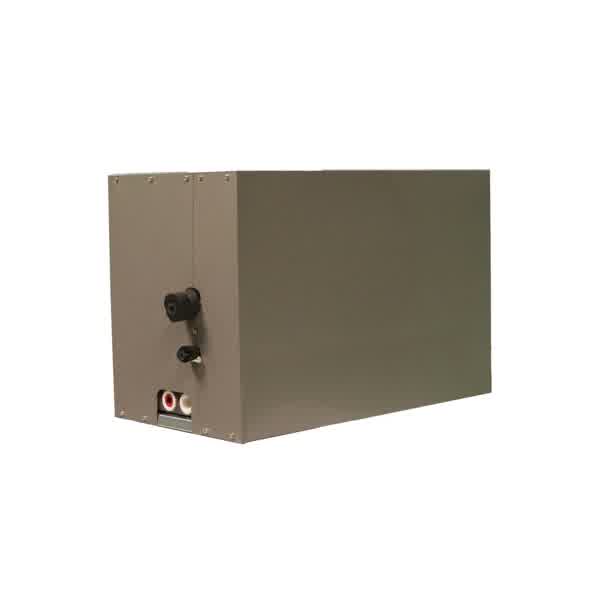

The Lennox CK40DT-50/60C-01 is a cased downflow evaporator coil for 4 to 5 ton R-410A systems, with a factory-installed R-410A expansion valve. It fits a 21-inch C cabinet Lennox furnace.
Key specs
- Capacity: 4 to 5 tons nominal
- Refrigerant: ships with an R-410A expansion valve and is R-454B compatible
- Cabinet: C size, 21 inches wide
- Connections: 7/8-inch suction and 3/8-inch liquid, sweat, plus two 3/4-inch FPT condensate drains on an anti-microbial drain pan
- Construction: Lennox Quantum coil with aluminum tubing and ripple-edged aluminum fins
Reading the model number
The first C means indoor coil, K means R-454B compatible, and 40 is the Quantum coil series. The D after 40 is the downflow cased cabinet, T is the factory expansion valve, 50/60 is the 4 to 5 ton size, C is the 21-inch cabinet that matches C furnaces, and 01 means an R-410A expansion valve is installed. You may also see it written as CK40DT-50-60C-01.
What it pairs with
It lines up with Lennox furnaces that carry the C cabinet letter. As shipped, it's set up for R-410A. The air conditioners and heat pumps we sell use R-454B, so pairing it with one needs Lennox's R-454B expansion valve and refrigerant detection parts, ordered separately.
Sizing and fit
Choose the size to match your outdoor unit's tonnage, and the cabinet letter to match your furnace. Have your outdoor unit's model number ready when you call, and we'll check it against Lennox's AHRI matchups.
Warranty and registration
HVAC USA is an authorized Lennox reseller, and everything we sell is new factory equipment. Your full Lennox warranty applies when a licensed, manufacturer-certified contractor installs your system and registers it within 60 days.
Shipping and help
It ships from our Kansas City warehouse. Call (913) 364-0070, Monday to Friday, 9am to 5pm CST, and we'll help you confirm sizing and an AHRI-matched pairing before you order.
Paired With — AHRI-matched systems for Lennox CK40DT-50/60C-01 21" Width 60,000 BTU Coil
AHRI-matched equipment that works with this unit. Add a full system or individual pieces.
Filter matches
Coil
EL22KCV-036-230
AHRI number 217886236
EL22KCV-036-230
AHRI number 217886233
EL22KCV-036-230
AHRI number 217886128
EL22KCV-036-230
AHRI number 217886235
EL22KCV-036-230
AHRI number 217886246
EL22KCV-036-230
AHRI number 217886247
EL22KCV-060-230
AHRI number 217886807
EL19KPV-048-230
AHRI number 217446827
EL22KCV-036-230
AHRI number 217886234
EL22KCV-036-230
AHRI number 217886066
EL22KCV-048-230
AHRI number 217886541
EL22KCV-060-230
AHRI number 217886810
EL22KCV-060-230
AHRI number 217886811
EL19KPV-048-230
AHRI number 217447114
EL19KPV-048-230
AHRI number 217446826
EL19KPV-048-230
AHRI number 217446822
EL19KPV-048-230
AHRI number 217446823
EL19KPV-048-230
AHRI number 217447119
EL19KPV-048-230
AHRI number 217447120
No AHRI-matched systems for this filter.
Specifications
| Specification | Value |
|---|---|
| Manufacturer | Lennox |
| SKU | CK40DT-50/60C-01 |
| Product type | Evaporator Coil |
| Coil width | 21" |
| Capacity (BTU) | 60,000 |
| Shipping weight (lb) | 71 |
| Refrigerant | R-410A |
| Cabinet width (in) | 21 |
| Cabinet size letter | C |
| Also listed as | CK40DT-50-60C-01 |
