Lennox 60,000 BTU Evaporator Coils
Lennox 60,000 BTU (5 ton) evaporator coils for 21 and 24.5 inch furnace cabinets, in R-454B and R-410A versions. Check each product page for the refrigerant and the furnace width a coil fits.
-
-
-
Quick view Lennox CHX35-51/61C-6F 21" Width 60,000 BTU Coil
The Lennox CHX35-51/61C-6F is a cased horizontal evaporator coil for 4 to 5 ton R-410A systems, with a...Regular price $1,155.22Sale price $1,155.22 Regular price -
Quick view Lennox CHX35-60D-6F 24.5" Width 60,000 BTU Coil
The Lennox CHX35-60D-6F is a cased horizontal evaporator coil for 5 ton R-410A systems, with a factory-installed check/expansion...Regular price $1,350.75Sale price $1,350.75 Regular price -
Quick view Lennox CH23-68 10" Width 60,000 BTU Coil
The Lennox CH23-68 is a horizontal evaporator coil for 5 plus ton systems, with a factory-installed RFC metering...Regular price $1,313.43Sale price $1,313.43 Regular price -
Quick view Lennox CH23-65 10" Width 60,000 BTU Coil
The Lennox CH23-65 is a horizontal evaporator coil for 5 ton systems, with a factory-installed RFC metering device....Regular price $910.45Sale price $910.45 Regular price -
Quick view Lennox C35-60D-2F 24.5" Width 60,000 BTU Coil
The Lennox C35-60D-2F is an upflow evaporator coil for 5 ton R-410A systems, with a factory-installed RFC metering...Regular price $1,026.87Sale price $1,026.87 Regular price -
Quick view Lennox C35-60C-2F 21" Width 60,000 BTU Coil
The Lennox C35-60C-2F is an upflow evaporator coil for 5 ton R-410A systems, with a factory-installed RFC metering...Regular price $994.03Sale price $994.03 Regular price -
Quick view Lennox CX35-60C-6F 21" Width 60,000 BTU Coil
The Lennox CX35-60C-6F is a cased upflow evaporator coil for 5 ton R-410A systems, with a factory-installed check/expansion...Regular price $885.07Sale price $885.07 Regular price -

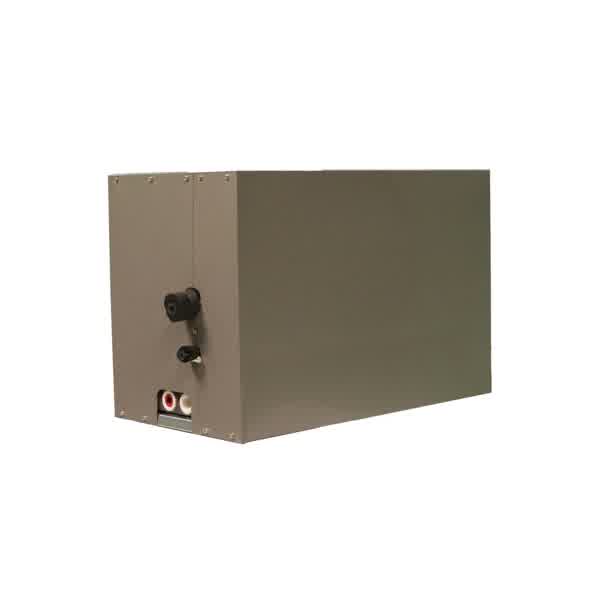

Quick view Lennox CK40DT-50/60C-01 21" Width 60,000 BTU Coil
The Lennox CK40DT-50/60C-01 is a cased downflow evaporator coil for 4 to 5 ton R-410A systems, with a...Regular price $701.49Sale price $701.49 Regular price
Matching a 5 ton Lennox coil
Coil families at this size include the C35, CHX35, CK40CT, CK40DT, CK40HT, CK40UT, and CX35, plus the CH23. Start with your furnace width. The letter after the size in the coil model number tells you the cabinet it fits: C for 21 inch and D for 24.5 inch. Most coils here are cased, so they come in their own cabinet. CK40UT models are uncased and fit inside an existing cabinet or plenum. The CH23 has no cabinet letter, so check its product page for dimensions.
Then match the refrigerant to your outdoor unit. R-454B: CK40CT, CK40DT, CK40HT, and CK40UT coils ending in -71. R-410A: the C35, CHX35, and CX35, plus CK40DT coils ending in -01. Browse every size on the Lennox evaporator coils page, or match the outdoor side with Lennox 60,000 BTU air conditioners and 5 ton heat pumps.
Call (913) 364-0070, Monday to Friday, 9am to 5pm CST, and we'll help you confirm sizing and an AHRI-matched pairing before you order. Everything ships from our Kansas City warehouse, and each product page shows whether an item ships free. HVAC USA is an authorized Lennox reseller, and everything we sell is new factory equipment. Your full Lennox warranty applies when a licensed, manufacturer-certified contractor installs your system and registers it within 60 days.
