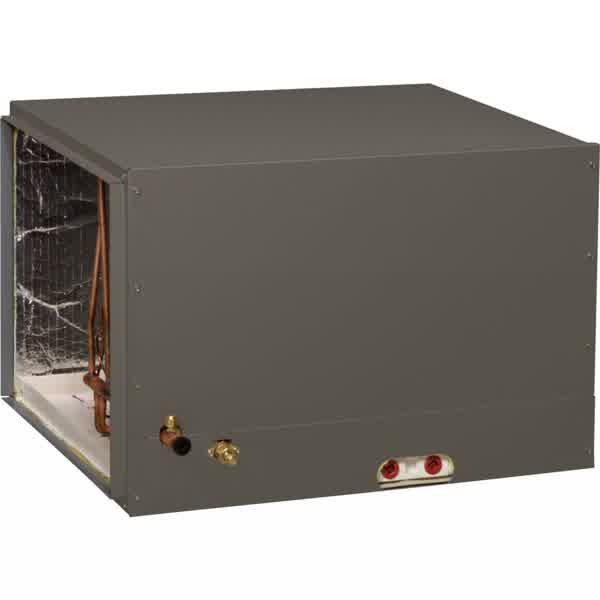

Lennox CK40HT-30B-01 17.5" Width 30,000 BTU Coil
Lennox CK40HT-30B-01 17.5" Width 30,000 BTU Coil
SKU:CK40HT-30B-01
In stock
Cased horizontal R-410A coil for 2.5 ton systems that fits 17.5-inch B cabinet Lennox furnaces. Call (913) 364-0070 to confirm your match.
- Fast shipping
- Expert phone help
- Manufacturer warranty
- AHRI-matched pairings
- Licensed startup required
Couldn't load pickup availability
We Accept
Shop by size and efficiency
Outdoor units in the same size
Shipping policy
Free shipping on major equipment from our Kansas City warehouse to every state and D.C. except Alaska, Hawaii, Washington, Oregon, and Idaho, where you pay the shipping rate shown at checkout. If your cart has a qualifying item, your whole order ships free. Most orders ship 2–5 business days; delivery 2–10 days. Small packages UPS/FedEx; large HVAC = LTL curbside + liftgate typical. Signature/appointment for freight; inspect before signing. Call (913) 364-0070 for help.
Returns and refunds
30-day return window from receipt; unused/original packaging + proof of purchase. Start return via info@hvacusa.store or (913) 364-0070 before shipping back to 9411 N Tracy Ave, Kansas City, MO 64155. Sale items/gift cards/custom not returnable. Approved refunds to original payment within ~10 business days after inspection.
About The Lennox CK40HT-30B-01
Description
The Lennox CK40HT-30B-01 is a cased horizontal evaporator coil for 2.5 ton R-410A systems, with a factory-installed R-410A expansion valve. It fits a 17.5-inch B cabinet Lennox furnace.
Key specs
- Capacity: 2.5 tons nominal
- Refrigerant: ships with an R-410A expansion valve and is R-454B compatible
- Cabinet: B size, 17.5 inches, 26.5 inches long
- Connections: 7/8-inch suction and 3/8-inch liquid, sweat, plus two 3/4-inch FPT condensate drains on an anti-microbial drain pan
- Construction: Lennox Quantum coil with aluminum tubing and ripple-edged aluminum fins
Reading the model number
The first C means indoor coil, K means R-454B compatible, and 40 is the Quantum coil series. The H after 40 is the horizontal cased cabinet, T is the factory expansion valve, 30 is the 2.5 ton size, B is the 17.5-inch cabinet that matches B furnaces, and 01 means an R-410A expansion valve is installed.
What it pairs with
It lines up with Lennox furnaces that carry the B cabinet letter. As shipped, it's set up for R-410A. The air conditioners and heat pumps we sell use R-454B, so pairing it with one needs Lennox's R-454B expansion valve and refrigerant detection parts, ordered separately.
Sizing and fit
Choose the size to match your outdoor unit's tonnage, and the cabinet letter to match your furnace. Right-hand airflow needs a field-built 6-inch spacer between the furnace and the coil. Have your outdoor unit's model number ready when you call, and we'll check it against Lennox's AHRI matchups.
Warranty and registration
HVAC USA is an authorized Lennox reseller, and everything we sell is new factory equipment. Your full Lennox warranty applies when a licensed, manufacturer-certified contractor installs your system and registers it within 60 days.
Shipping and help
It ships from our Kansas City warehouse. Call (913) 364-0070, Monday to Friday, 9am to 5pm CST, and we'll help you confirm sizing and an AHRI-matched pairing before you order.
Paired With — AHRI-matched systems for Lennox CK40HT-30B-01 17.5" Width 30,000 BTU Coil
AHRI-matched equipment that works with this unit. Add a full system or individual pieces.
Filter matches
Coil
EL22KCV-036-230
AHRI number 217886081
EL22KCV-036-230
AHRI number 217885873
EL22KCV-024-230
AHRI number 217885366
EL22KCV-024-230
AHRI number 217885470
EL22KCV-024-230
AHRI number 217885472
EL22KCV-024-230
AHRI number 217885469
EL22KCV-024-230
AHRI number 217885372
EL22KCV-024-230
AHRI number 217885374
EL22KCV-024-230
AHRI number 217885365
EL22KCV-024-230
AHRI number 217885375
EL22KCV-036-230
AHRI number 217886130
EL22KCV-036-230
AHRI number 217885879
EL22KCV-036-230
AHRI number 217885876
EL22KCV-024-230
AHRI number 217885367
EL22KCV-024-230
AHRI number 217885369
EL22KCV-024-230
AHRI number 217885370
EL22KCV-024-230
AHRI number 217885371
EL22KCV-024-230
AHRI number 217885373
EL22KCV-036-230
AHRI number 217886082
No AHRI-matched systems for this filter.
Specifications
| Specification | Value |
|---|---|
| Manufacturer | Lennox |
| SKU | CK40HT-30B-01 |
| Product type | Evaporator Coil |
| Coil width | 17.5" |
| Capacity (tons) | 2.5 |
| Capacity (BTU) | 30,000 |
| Shipping weight (lb) | 54 |
| Refrigerant | R-410A |
| Cabinet width (in) | 17.5 |
| Cabinet size letter | B |
