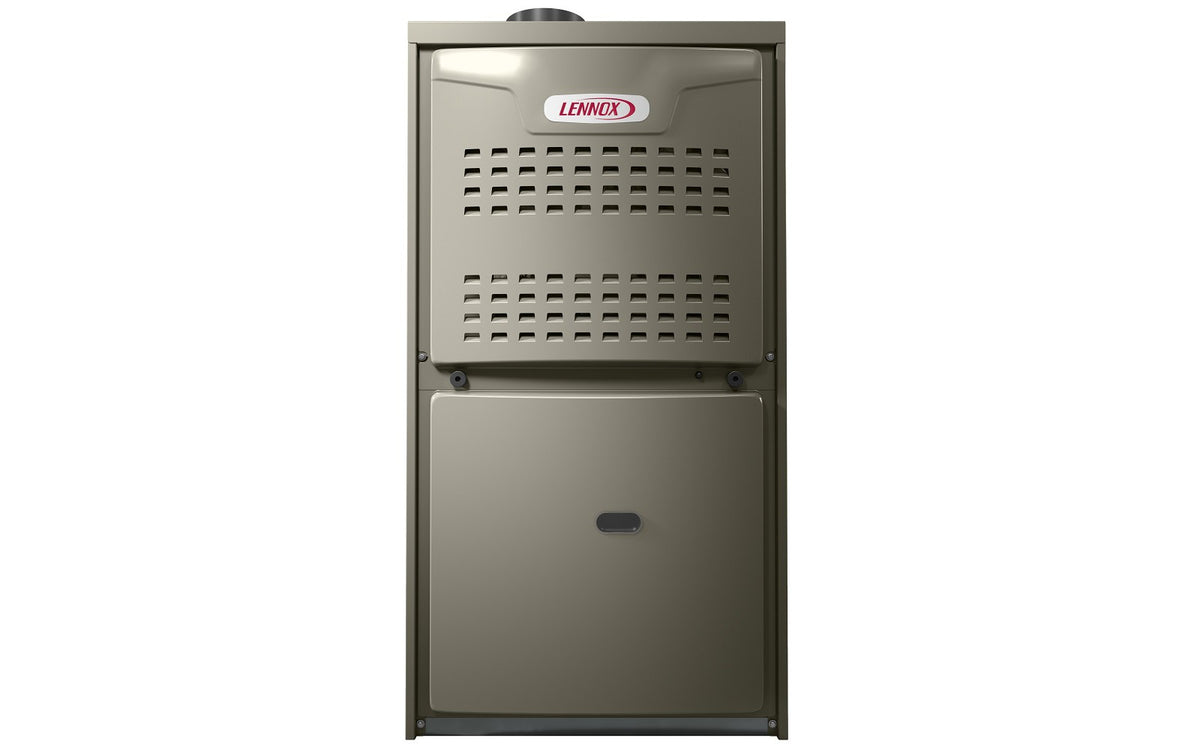

About The Lennox ML180UH045E36AK
Description
The Lennox ML180UH045E36AK is a Merit Series single-stage gas furnace rated 44,000 BTU input and 36,000 BTU output at 80% AFUE. It comes in a 14.5-inch A cabinet, installs upflow or horizontal, and has a constant torque blower sized for 1.5 to 3 tons of add-on cooling.
Key specs
- Heating: 44,000 BTU input, 36,000 BTU output, 80% AFUE, single-stage
- Cabinet: A size, 14.5 inches wide, upflow or horizontal (left or right)
- Blower: 1/2 hp constant torque motor, 350 to 1,380 cfm, for 1.5 to 3 tons of cooling
- Temperature rise: 15 to 45°F
Reading the model number
ML is Lennox's Merit line, 1 means single-stage, 80 is the AFUE, and UH is upflow/horizontal. 045 is the 44,000 BTU input, E is the high efficiency constant torque blower motor, 36 is the nominal add-on cooling size, A is the 14.5-inch cabinet, and K means the furnace is ready for Lennox refrigerant detection.
What it pairs with
Coils with the same letter physically match the furnace, so you want a Lennox coil with A in its size code, such as a CK40CT, CK40HT, or CK40UT.
The AHRI Directory lists this furnace in certified systems with CK40CT, CK40HT, and CK40UT coils and Lennox EL15KC1, EL16KC1, EL18KCV, EL22KCV, ML13KC1, ML14KC1, and ML17KC2 air conditioners, plus EL16KP1, EL18KSLV, EL19KPV, EL21KLV, and ML14KP1 heat pumps. Your efficiency rating depends on the exact outdoor unit, coil, and furnace together.
Sizing and fit
Not sure which size you need? Call or text (913) 364-0070 and we'll size it with you. Filters and filter mounting aren't included, so plan for a filter rack.
This model doesn't carry the X low NOx code. For California, the ML180UH045XE36AK meets the state's 40 ng/J NOx standard, but Lennox says this furnace series can't go in the South Coast, San Joaquin Valley, and Bay Area air districts. It isn't certified for mobile homes, RVs, or outdoor installs.
Warranty and registration
HVAC USA is an authorized Lennox reseller, and everything we sell is new factory equipment. Your full Lennox warranty applies when a licensed, manufacturer-certified contractor installs your system and registers it within 60 days.
Compare related Lennox furnaces
Compare this furnace with other Lennox 80% AFUE furnaces, Lennox Merit furnaces, Lennox single-stage furnaces and Lennox 44,000 BTU furnaces. You can also browse all Lennox gas furnaces. Adding cooling? Pick a matching Lennox evaporator coil for the cabinet width.
Shipping and help
It ships from our Midwest warehouse to the lower 48 states and D.C. It ships free when your cart also has an item that ships free, except to Washington, Oregon, and Idaho. For Alaska, Hawaii, Puerto Rico, other U.S. territories, or an APO or FPO address, call or text us for a quote. Call (913) 364-0070, Monday to Friday, 9am to 5pm CST, and we'll help you confirm sizing and an AHRI-matched pairing before you order.
ML180UH045E36AK or ML180UH045E36A?
The K at the end of ML180UH045E36AK means the furnace is ready for Lennox refrigerant detection. The ML180UH045E36A has the same heating ratings and cabinet without that feature. If your new coil and outdoor unit use R-454B, call or text (913) 364-0070 and we will confirm which version your system needs.
One certified match for the ML180UH045E36AK
AHRI certificate 217886081 lists the ML180UH045E36AK with a Lennox EL22KCV-036-230 air conditioner and CK40HT-30B-71 coil, rated 21.25 SEER2 and 13 EER2. Your actual rating depends on the exact outdoor unit, coil and furnace you install together.
Paired With — AHRI-matched systems for Lennox ML180UH045E36AK 80% AFUE 44,000 BTU 14.5" Wide Furnace
AHRI-matched equipment that works with this unit. Add a full system or individual pieces.
Filter matches
Coil
ML14KC1-018-230
AHRI number 215578594
ML14KC1-018-230
AHRI number 215578633
ML14KC1-018-230
AHRI number 215578674
ML14KC1-018-230
AHRI number 215578714
ML14KC1-018-230
AHRI number 215578766
ML14KC1-018-230
AHRI number 215578778
ML14KC1-018-230
AHRI number 215578796
ML14KC1-018-230
AHRI number 215578812
ML14KC1-018-230
AHRI number 215578835
ML14KC1-018-230
AHRI number 215578856
ML14KC1-024-230
AHRI number 215580195
ML14KC1-024-230
AHRI number 215580241
ML14KC1-024-230
AHRI number 215580293
ML14KC1-024-230
AHRI number 215580363
ML14KC1-024-230
AHRI number 215580453
ML14KC1-024-230
AHRI number 215580638
ML14KC1-024-230
AHRI number 215580668
ML14KC1-024-230
AHRI number 215580712
ML14KC1-024-230
AHRI number 215580761
Loading pairings
Those pairings didn't load. Try again.
No AHRI-matched systems for this filter.
Specifications
| Specification | Value |
|---|---|
| Manufacturer | Lennox |
| SKU | ML180UH045E36AK |
| Product type | Furnace |
| Furnace width | 14.5" |
| Input (BTU/h) | 44,000 |
| AFUE (%) | 80 |
| Voltage | 120 |
| Phase | 1 |
| Frequency (Hz) | 60 |
| Electrical | 120-1-60 |
| Height (in) | 33 |
| Depth (in) | 27.75 |
| Shipping weight (lb) | 111 |
| Stages | Single |
| Cabinet width (in) | 14.5 |
| Output (BTU/h) | 36,000 |
| Vent connection | 4 in. round flue connection |
| Cabinet size letter | A |
