About The Lennox CK40DT-24A-71
Description

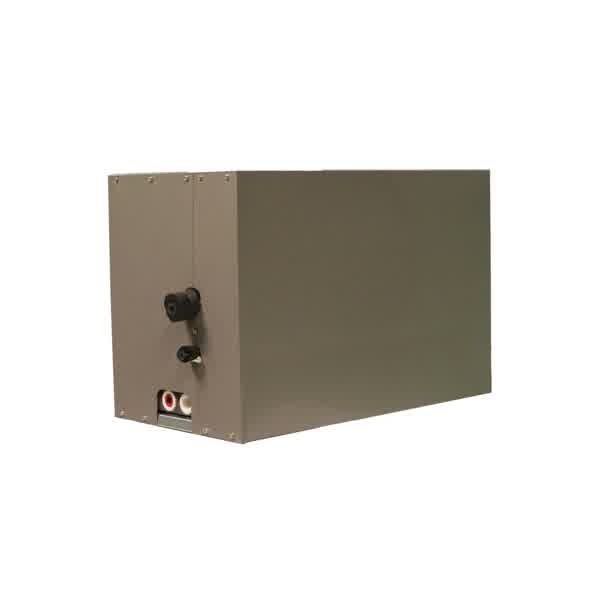

The Lennox CK40DT-24A-71 is a cased downflow evaporator coil for 2 ton R-454B systems, with a factory-installed R-454B expansion valve. It fits a 14.5-inch A cabinet Lennox furnace.
Key specs
- Capacity: 2 tons nominal
- Refrigerant: R-454B only, with a refrigerant detection sensor installed at the factory
- Cabinet: A size, 14.5 inches wide
- Connections: 7/8-inch suction and 3/8-inch liquid, sweat, plus two 3/4-inch FPT condensate drains on an anti-microbial drain pan
- Construction: Lennox Quantum coil with aluminum tubing and ripple-edged aluminum fins
Reading the model number
The first C means indoor coil, K means R-454B, and 40 is the Quantum coil series. The D after 40 is the downflow cased cabinet, T is the factory expansion valve, 24 is the 2 ton size, A is the 14.5-inch cabinet that matches A furnaces, and 71 means R-454B only.
What it pairs with
It lines up with Lennox furnaces that carry the A cabinet letter. The AHRI Directory lists it with these Lennox units we sell: EL15KC1, EL16KC1, EL18KCV, EL22KCV, ML13KC1, ML14KC1, and ML17KC2 air conditioners and EL18KSLV heat pumps. The best listed match we carry is the EL22KCV-024-230 air conditioner on an SL280DF070V36A furnace, at 18.75 SEER2.
Sizing and fit
Choose the size to match your outdoor unit's tonnage, and the cabinet letter to match your furnace. If your furnace has no built-in RDS mitigation control, it needs Lennox's RDS blower control board, ordered separately. Have your outdoor unit's model number ready when you call, and we'll check it against Lennox's AHRI matchups.
Warranty and registration
HVAC USA is an authorized Lennox reseller, and everything we sell is new factory equipment. Your full Lennox warranty applies when a licensed, manufacturer-certified contractor installs your system and registers it within 60 days.
Shipping and help
It ships from our Kansas City warehouse to the lower 48 states and D.C. It ships free when your cart also has an item that ships free, except to Washington, Oregon, and Idaho. For Alaska, Hawaii, Puerto Rico, other U.S. territories, or an APO or FPO address, call or text us for a quote. Call (913) 364-0070, Monday to Friday, 9am to 5pm CST, and we'll help you confirm sizing and an AHRI-matched pairing before you order.
Paired With — AHRI-matched systems for Lennox CK40DT-24A-71 14.5" Width 24,000 BTU Coil
AHRI-matched equipment that works with this unit. Add a full system or individual pieces.
Filter matches
Coil
ML14KC1-018-230
AHRI number 215578750
ML14KC1-024-230
AHRI number 215580554
ML14KC1-024-230
AHRI number 215580556
ML14KC1-024-230
AHRI number 215580558
Furnace
SL280DF070V36A*
SKU: SL280DF070V36A
ML14KC1-030-230
AHRI number 215581638
ML14KC1-030-230
AHRI number 215581640
ML14KC1-030-230
AHRI number 215581642
Furnace
SL280DF070V36A*
SKU: SL280DF070V36A
ML13KC1-018-230
AHRI number 215584902
ML13KC1-018-230
AHRI number 215584904
ML13KC1-018-230
AHRI number 215584906
ML13KC1-024-230
AHRI number 215585036
Furnace
SL280DF070V36A*
SKU: SL280DF070V36A
ML13KC1-024-230
AHRI number 215585038
ML13KC1-024-230
AHRI number 215585040
ML13KC1-030-230
AHRI number 215586729
ML13KC1-030-230
AHRI number 215586730
ML13KC1-030-230
AHRI number 215586731
Furnace
SL280DF070V36A*
SKU: SL280DF070V36A
EL16KC1-018-230
AHRI number 215658548
EL16KC1-018-230
AHRI number 215658550
EL16KC1-024-230
AHRI number 215658936
Loading pairings
Those pairings didn't load. Try again.
No AHRI-matched systems for this filter.
Specifications
| Specification | Value |
|---|---|
| Manufacturer | Lennox |
| SKU | CK40DT-24A-71 |
| Product type | Evaporator Coil |
| Coil width | 14.5" |
| Capacity (tons) | 2 |
| Capacity (BTU) | 24,000 |
| Shipping weight (lb) | 44 |
| Refrigerant | R-454B |
| Cabinet width (in) | 14.5 |
| Cabinet size letter | A |
Ordering
| Detail | Value |
|---|---|
| Lead time | Ships from our Kansas City warehouse. Most in-stock items leave in 1 to 3 business days; special-order equipment is confirmed by phone before ship. |
| Freight note | Ships residential freight (curbside) with liftgate delivery added automatically. Call or text (913) 364-0070 for scheduling or commercial delivery. |
