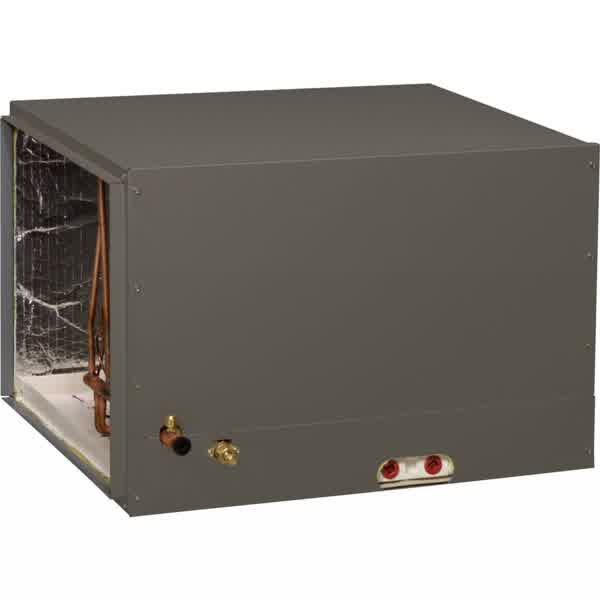

Lennox CK40HT-42C-71 21" Width 42,000 BTU Coil

Lennox CK40HT-42C-71 21" Width 42,000 BTU Coil

CK40HT-42C-71

In stock

  • Lennox CK40HT-42C-71 21" Width 42,000 BTU Coil

Cased horizontal R-454B coil for 3.5 ton systems that fits 21-inch C cabinet Lennox furnaces. Call (913) 364-0070 to confirm your match.

  • Fast shipping
  • Expert phone help
  • Manufacturer warranty
  • AHRI-matched pairings
  • Licensed startup required
$943.28
$943.28 $1,791.79
Sale Sold out
Shipping calculated at checkout.
Call Text

We Accept

  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Shop by size and efficiency

Outdoor units in the same size

View full details

About The Lennox CK40HT-42C-71

The Lennox CK40HT-42C-71 is a cased horizontal evaporator coil for 3.5 ton R-454B systems, with a factory-installed R-454B expansion valve. It fits a 21-inch C cabinet Lennox furnace.

Key specs

  • Capacity: 3.5 tons nominal
  • Refrigerant: R-454B only, with a refrigerant detection sensor installed at the factory
  • Cabinet: C size, 21 inches, 26.5 inches long
  • Connections: 7/8-inch suction and 3/8-inch liquid, sweat, plus two 3/4-inch FPT condensate drains on an anti-microbial drain pan
  • Construction: Lennox Quantum coil with aluminum tubing and ripple-edged aluminum fins

Reading the model number

The first C means indoor coil, K means R-454B, and 40 is the Quantum coil series. The H after 40 is the horizontal cased cabinet, T is the factory expansion valve, 42 is the 3.5 ton size, C is the 21-inch cabinet that matches C furnaces, and 71 means R-454B only.

What it pairs with

It lines up with Lennox furnaces that carry the C cabinet letter. The AHRI Directory lists it with these Lennox units we sell: EL15KC1, EL16KC1, EL18KCV, EL22KCV, ML13KC1, ML14KC1, and ML17KC2 air conditioners and EL16KP1, EL18KSLV, EL19KPV, EL21KLV, and ML14KP1 heat pumps. The best listed match we carry is the EL22KCV-036-230 air conditioner on an ML193UH090XE36C furnace, at 21.25 SEER2.

Sizing and fit

Choose the size to match your outdoor unit's tonnage, and the cabinet letter to match your furnace. If your furnace has no built-in RDS mitigation control, it needs Lennox's RDS blower control board, ordered separately. Right-hand airflow needs a field-built 6-inch spacer between the furnace and the coil. Have your outdoor unit's model number ready when you call, and we'll check it against Lennox's AHRI matchups.

Warranty and registration

HVAC USA is an authorized Lennox reseller, and everything we sell is new factory equipment. Your full Lennox warranty applies when a licensed, manufacturer-certified contractor installs your system and registers it within 60 days.

Shipping and help

It ships from our Kansas City warehouse. Call (913) 364-0070, Monday to Friday, 9am to 5pm CST, and we'll help you confirm sizing and an AHRI-matched pairing before you order.

Paired With

AHRI-matched equipment that works with this unit. Add a full system or individual pieces.

Filter matches

EL22KCV-036-230

SEER2 21.25

AHRI number 217885959

SEER
21.25
EER
13.2
Cooling
35000
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-036-230

SEER2 21.25

AHRI number 217885962

SEER
21.25
EER
13.2
Cooling
35200
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-024-230

SEER2 20.75

AHRI number 217885429

SEER
20.75
EER
14.8
Cooling
23600
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-036-230

SEER2 20.75

AHRI number 217886100

SEER
20.75
EER
13.2
Cooling
35400
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-036-230

SEER2 20.75

AHRI number 217886099

SEER
20.75
EER
13.2
Cooling
34800
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-024-230

SEER2 20.25

AHRI number 217885489

SEER
20.25
EER
15
Cooling
24400
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-036-230

SEER2 20.25

AHRI number 217886104

SEER
20.25
EER
12.7
Cooling
35400
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-036-230

SEER2 20.25

AHRI number 217886102

SEER
20.25
EER
12.8
Cooling
34800
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-024-230

SEER2 19.75

AHRI number 217885491

SEER
19.75
EER
14.2
Cooling
24000
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-024-230

SEER2 19.75

AHRI number 217885536

SEER
19.75
EER
14
Cooling
24000
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-024-230

SEER2 19.75

AHRI number 217885537

SEER
19.75
EER
14.4
Cooling
24000
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-024-230

SEER2 19.75

AHRI number 217885488

SEER
19.75
EER
14.4
Cooling
24000
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-024-230

SEER2 19.75

AHRI number 217885490

SEER
19.75
EER
14.4
Cooling
24200
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-036-230

SEER2 19.75

AHRI number 217886186

SEER
19.75
EER
12.5
Cooling
35200
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-036-230

SEER2 19.75

AHRI number 217886187

SEER
19.75
EER
12.9
Cooling
35400
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-036-230

SEER2 19.75

AHRI number 217886188

SEER
19.75
EER
12.7
Cooling
35200
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-036-230

SEER2 19.75

AHRI number 217886190

SEER
19.75
EER
12.9
Cooling
35400
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-036-230

SEER2 19.75

AHRI number 217886101

SEER
19.75
EER
13.6
Cooling
34800
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-036-230

SEER2 19.75

AHRI number 217885966

SEER
19.75
EER
13
Cooling
35400
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-036-230

SEER2 19.75

AHRI number 217885969

SEER
19.75
EER
13
Cooling
35400
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

Specifications

Specification Value
Manufacturer Lennox
SKU CK40HT-42C-71
Product type Evaporator Coil
Coil width 21"
Capacity (tons) 3.5
Capacity (BTU) 42,000
Shipping weight (lb) 67
Refrigerant R-454B
Cabinet width (in) 21
Cabinet size letter C

Ordering

Detail Value
Lead time Ships from our Kansas City warehouse. Most in-stock items leave in 1 to 3 business days; special-order equipment is confirmed by phone before ship.
Freight note Ships residential freight (curbside). Will-call available at our Kansas City warehouse. Call (913) 364-0070 for liftgate, scheduling, or commercial delivery.

Documents

Spec sheet
