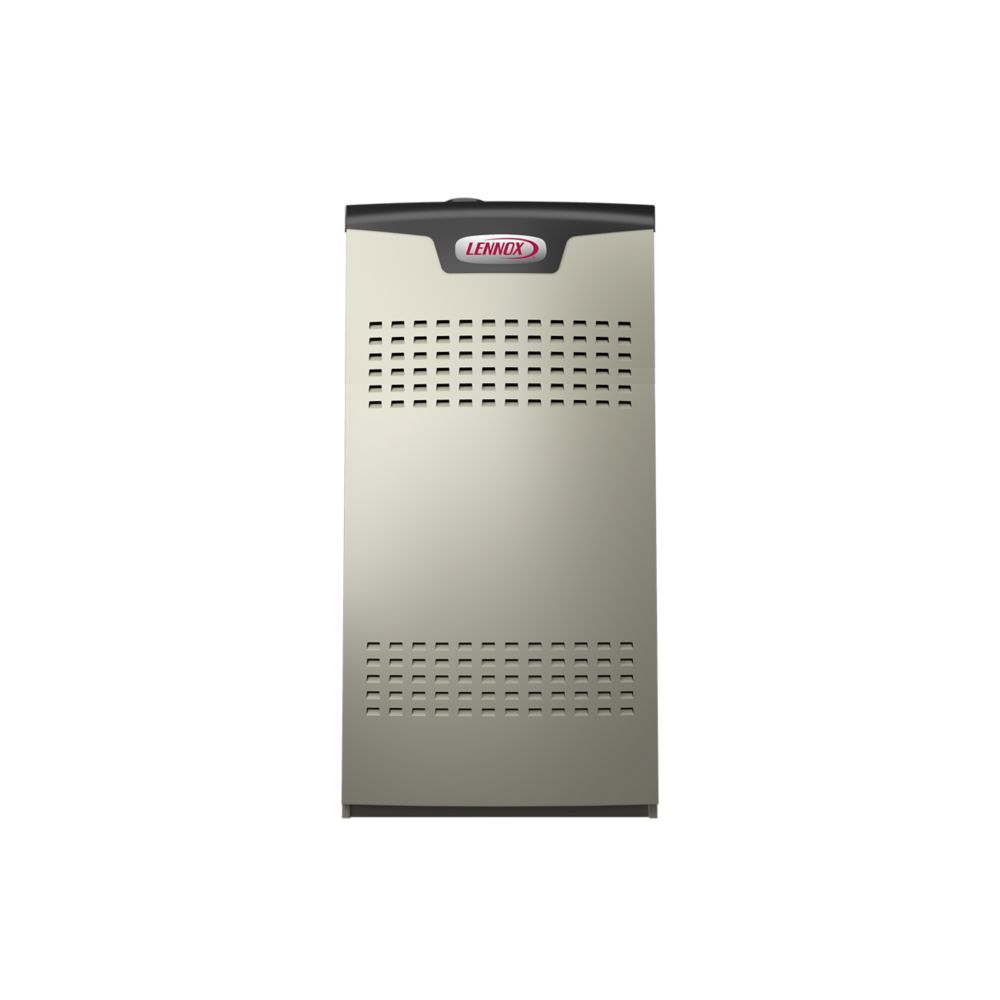

The Lennox EL195UH040NE36BK is an Elite Series single-stage gas furnace rated 40,000 BTU input and 39,000 BTU output at 95% AFUE. It comes in a 17.5-inch B cabinet, installs upflow or horizontal, and has a constant torque blower sized for 1 to 2 tons of add-on cooling.
EL is Lennox's Elite line, 1 means single-stage, 95 is the AFUE, and UH is upflow/horizontal. 040 is the 40,000 BTU input, N means it meets California's 14 ng/J NOx standard, E is the high efficiency constant torque blower motor, 36 is the nominal add-on cooling size, B is the 17.5-inch cabinet, and K means the furnace is ready for Lennox refrigerant detection.
Coils with the same letter physically match the furnace, so you want a Lennox coil with B in its size code, such as a CK40CT, CK40HT, or CK40UT.
The AHRI Directory lists this furnace in certified systems with CK40CT, CK40HT, and CK40UT coils and Lennox EL16KC1, EL18KCV, EL22KCV, ML14KC1, and ML17KC2 air conditioners, plus EL16KP1, EL18KSLV, EL19KPV, EL21KLV, and ML14KP1 heat pumps. Your efficiency rating depends on the exact outdoor unit, coil, and furnace together.
Not sure which size you need? Call or text (913) 364-0070 and we'll size it with you. Filters and filter mounting aren't included, so plan for a filter rack.
Because it meets the 14 ng/J limit, Lennox approves it for the South Coast, San Joaquin Valley, and Bay Area air districts. It isn't certified for mobile homes, RVs, or outdoor installs.
HVAC USA is an authorized Lennox reseller, and everything we sell is new factory equipment. Your full Lennox warranty applies when a licensed, manufacturer-certified contractor installs your system and registers it within 60 days.
This item ships free from our Midwest warehouse to the lower 48 states and D.C., and so does the rest of your order, except to Washington, Oregon, and Idaho, where you pay the shipping rate shown at checkout. For Alaska, Hawaii, Puerto Rico, other U.S. territories, or an APO or FPO address, call or text us for a quote. Call (913) 364-0070, Monday to Friday, 9am to 5pm CST, and we'll help you confirm sizing and an AHRI-matched pairing before you order.
AHRI-matched equipment that works with this unit. Add a full system or individual pieces.
Filter matches
Coil
ML14KC1-018-230
Outdoor
ML14KC1-018-230
ML14KC1-018-230
Outdoor
ML14KC1-018-230
ML14KC1-018-230
Outdoor
ML14KC1-018-230
ML14KC1-018-230
Outdoor
ML14KC1-018-230
ML14KC1-018-230
Outdoor
ML14KC1-018-230
ML14KC1-018-230
Outdoor
ML14KC1-018-230
ML14KC1-018-230
Outdoor
ML14KC1-018-230
ML14KC1-018-230
Outdoor
ML14KC1-018-230
ML14KC1-024-230
Outdoor
ML14KC1-024-230
ML14KC1-024-230
Outdoor
ML14KC1-024-230
ML14KC1-024-230
Outdoor
ML14KC1-024-230
ML14KC1-024-230
Outdoor
ML14KC1-024-230
ML14KC1-024-230
Outdoor
ML14KC1-024-230
ML14KC1-024-230
Outdoor
ML14KC1-024-230
ML14KC1-024-230
Outdoor
ML14KC1-024-230
ML14KC1-024-230
Outdoor
ML14KC1-024-230
ML14KC1-030-230
Outdoor
ML14KC1-030-230
ML14KC1-030-230
Outdoor
ML14KC1-030-230
ML14KC1-030-230
Outdoor
ML14KC1-030-230
ML14KC1-030-230
Outdoor
ML14KC1-030-230
Loading pairings
Those pairings didn't load. Try again.
No AHRI-matched systems for this filter.
| Specification | Value |
|---|---|
| Manufacturer | Lennox |
| SKU | EL195UH040NE36BK |
| Product type | Furnace |
| Furnace width | 17.5" |
| Input (BTU/h) | 40,000 |
| AFUE (%) | 95 |
| Voltage | 120 |
| Phase | 1 |
| Frequency (Hz) | 60 |
| Electrical | 120-1-60 |
| MOCP | 15 |
| Height (in) | 33 |
| Depth (in) | 27.75 |
| Shipping weight (lb) | 122 |
| Stages | Single |
| Cabinet width (in) | 17.5 |
| Output (BTU/h) | 39,000 |
| Vent connection | 2 in. intake / 2 in. exhaust (PVC) |
| Cabinet size letter | B |
