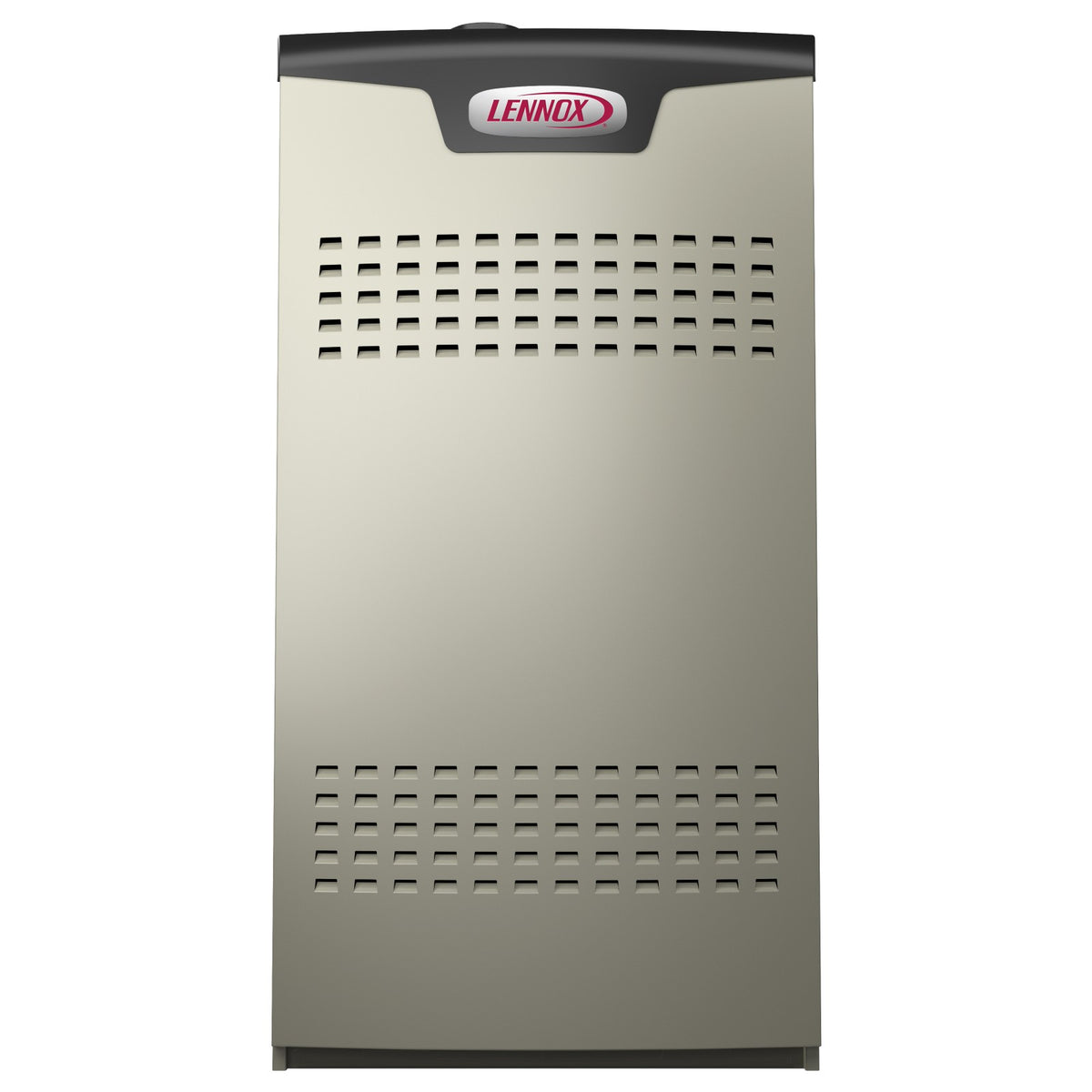

Lennox EL280UH090E36BK 80% AFUE 88,000 BTU 17.5" Wide Furnace

Lennox EL280UH090E36BK 80% AFUE 88,000 BTU 17.5" Wide Furnace

EL280UH090E36BK

In stock

Elite two-stage gas furnace: 88,000 BTU input at 80% AFUE in a 17.5-inch B cabinet that fits B-size Lennox coils. Call (913) 364-0070 to confirm your match.

  • Fast shipping
  • Expert phone help
  • Manufacturer warranty
  • AHRI-matched pairings
  • Licensed contractor install required for warranty
$2,556.72
$2,556.72
Sale Sold out
Free shipping Ships free from our Kansas City warehouse to every state and D.C. except Alaska, Hawaii, Washington, Oregon, and Idaho, where you pay the shipping rate shown at checkout. For Puerto Rico, other U.S. territories, or areas that need ferry or air freight, call (913) 364-0070 for a quote.
Call Text

We Accept

  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Shop by size and efficiency

View full details

About The Lennox EL280UH090E36BK

The Lennox EL280UH090E36BK is an Elite Series two-stage gas furnace rated 88,000 BTU input and 71,000 BTU output on high fire at 80% AFUE. It comes in a 17.5-inch B cabinet, installs upflow or horizontal, and has a constant torque blower sized for 2 to 3.5 tons of add-on cooling.

Key specs

  • Heating: 88,000 BTU input, 71,000 BTU output, 80% AFUE, two-stage, 57,000 BTU input on low fire
  • Cabinet: B size, 17.5 inches wide, upflow or horizontal
  • Blower: 1/2 hp constant torque motor, 350 to 1,600 cfm, for 2 to 3.5 tons of cooling
  • Temperature rise: 35 to 65°F on high fire, 25 to 55°F on low fire

Reading the model number

EL is Lennox's Elite line, 2 means two-stage, 80 is the AFUE, and UH is upflow/horizontal. 090 is the 88,000 BTU input, E is the high efficiency constant torque blower motor, 36 is the nominal add-on cooling size, B is the 17.5-inch cabinet, and K means the furnace is ready for Lennox refrigerant detection.

What it pairs with

Coils with the same letter physically match the furnace, so you want a Lennox coil with B in its size code, such as a CK40CT, CK40HT, or CK40UT.

The AHRI Directory lists this furnace in certified systems with CK40CT, CK40HT, and CK40UT coils and Lennox EL15KC1, EL16KC1, EL18KCV, EL22KCV, ML13KC1, ML14KC1, and ML17KC2 air conditioners, plus EL16KP1, EL18KSLV, EL19KPV, EL21KLV, and ML14KP1 heat pumps. Your efficiency rating depends on the exact outdoor unit, coil, and furnace together.

Sizing and fit

Size the furnace from a Manual J load calculation. Filters and filter mounting aren't included, so plan for a filter rack.

This model doesn't carry the X low NOx code, and Lennox says this furnace series can't go in the South Coast and San Joaquin Valley air districts. It isn't certified for mobile homes, RVs, or outdoor installs.

Warranty and registration

HVAC USA is an authorized Lennox reseller, and everything we sell is new factory equipment. Your full Lennox warranty applies when a licensed, manufacturer-certified contractor installs your system and registers it within 60 days.

Shipping and help

Free shipping on major equipment from our Kansas City warehouse to every state and D.C. except Alaska, Hawaii, Washington, Oregon, and Idaho, where you pay the shipping rate shown at checkout. Call (913) 364-0070, Monday to Friday, 9am to 5pm CST, and we'll help you confirm sizing and an AHRI-matched pairing before you order.

Paired With

AHRI-matched equipment that works with this unit. Add a full system or individual pieces.

Filter matches

EL22KCV-036-230

SEER2 21.75

AHRI number 217885744

SEER
21.75
EER
13.2
Cooling
35200
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-036-230

SEER2 21.75

AHRI number 217885713

SEER
21.75
EER
13.2
Cooling
34800
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-036-230

SEER2 21.25

AHRI number 217885982

SEER
21.25
EER
13.2
Cooling
34800
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-036-230

SEER2 21.25

AHRI number 217885907

SEER
21.25
EER
12.8
Cooling
33600
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-036-230

SEER2 21.25

AHRI number 217885873

SEER
21.25
EER
13.2
Cooling
34800
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-036-230

SEER2 21.25

AHRI number 217885849

SEER
21.25
EER
12.8
Cooling
33800
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-036-230

SEER2 21.25

AHRI number 217885676

SEER
21.25
EER
13
Cooling
34400
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-024-230

SEER2 20.75

AHRI number 217885366

SEER
20.75
EER
14.8
Cooling
23400
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-024-230

SEER2 20.75

AHRI number 217885305

SEER
20.75
EER
14.4
Cooling
24400
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-024-230

SEER2 20.75

AHRI number 217885269

SEER
20.75
EER
14.8
Cooling
23200
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-024-230

SEER2 20.25

AHRI number 217885399

SEER
20.25
EER
14
Cooling
23600
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-024-230

SEER2 20.25

AHRI number 217885338

SEER
20.25
EER
14
Cooling
23600
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-024-230

SEER2 20.25

AHRI number 217885184

SEER
20.25
EER
14
Cooling
23800
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-036-230

SEER2 20.25

AHRI number 217885614

SEER
20.25
EER
12.6
Cooling
33000
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-024-230

SEER2 19.25

AHRI number 217885220

SEER
19.25
EER
13.4
Cooling
22800
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL19KPV-024-230

SEER2 19

AHRI number 217446842

SEER
19
EER
13
HSPF
8.5
Cooling
24000
Heating
24000
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL19KPV-024-230

SEER2 19

AHRI number 217446892

SEER
19
EER
13
HSPF
8.2
Cooling
23400
Heating
23000
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL19KPV-024-230

SEER2 19

AHRI number 217194137

SEER
19
EER
12.8
HSPF
8.5
Cooling
24000
Heating
23400
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL19KPV-036-230

SEER2 19

AHRI number 217194202

SEER
19
EER
11.2
HSPF
8.2
Cooling
34800
Heating
32200
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL21KLV-024-230

SEER2 19

AHRI number 217443087

SEER
19
EER
13
HSPF
8.5
Cooling
24000
Heating
24600
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

Specifications

Specification Value
Manufacturer Lennox
SKU EL280UH090E36BK
Product type Furnace
Furnace width 17.5"
Input (BTU/h) 88,000
AFUE (%) 80
Voltage 120
Phase 1
Frequency (Hz) 60
Electrical 120-1-60
MOCP 15
Height (in) 33
Depth (in) 27.75
Shipping weight (lb) 136
Stages Two
Cabinet width (in) 17.5
Output (BTU/h) 71,000
Low-fire output (BTU/h) 47,000
Vent connection 4 in. round flue connection
Cabinet size letter B

Ordering

Detail Value
Lead time Ships from our Kansas City warehouse. Most in-stock items leave in 1 to 3 business days; special-order equipment is confirmed by phone before ship.
Freight note Ships residential freight (curbside). Will-call available at our Kansas City warehouse. Call (913) 364-0070 for liftgate, scheduling, or commercial delivery.

Documents

Spec sheet
