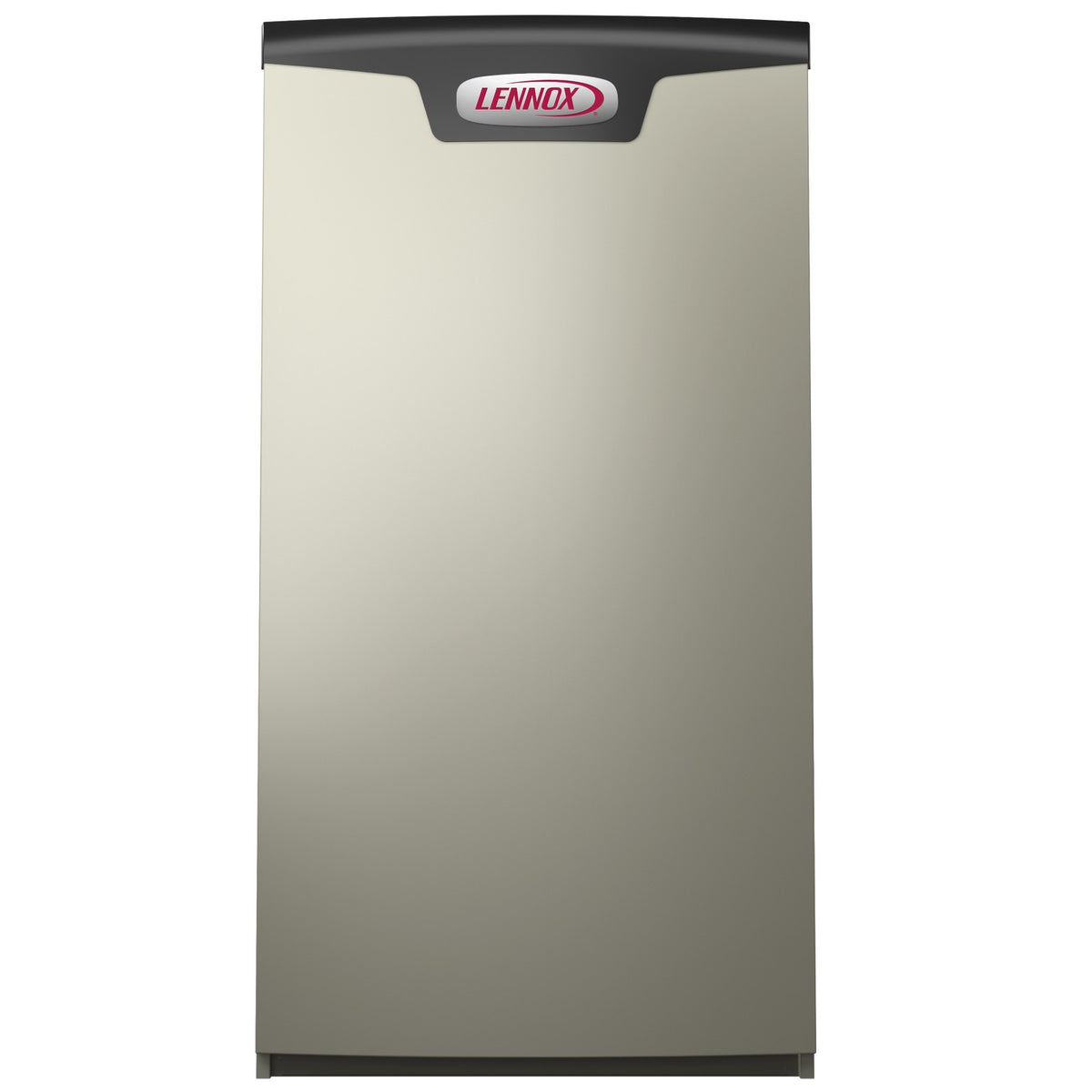

Lennox EL297UH070XE36BK 97% AFUE 66,000 BTU 17.5" Wide Furnace

Lennox EL297UH070XE36BK 97% AFUE 66,000 BTU 17.5" Wide Furnace

EL297UH070XE36BK

In stock

Elite two-stage gas furnace: 66,000 BTU input at 97% AFUE in a 17.5-inch B cabinet that fits B-size Lennox coils. Call (913) 364-0070 to confirm your match.

  • Fast shipping
  • Expert phone help
  • Manufacturer warranty
  • AHRI-matched pairings
  • Licensed contractor install required for warranty
$2,946.27
$2,946.27
Sale Sold out
Free shipping Ships free from our Kansas City warehouse to every state and D.C. except Alaska, Hawaii, Washington, Oregon, and Idaho, where you pay the shipping rate shown at checkout. For Puerto Rico, other U.S. territories, or areas that need ferry or air freight, call (913) 364-0070 for a quote.
Call Text

We Accept

  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Shop by size and efficiency

View full details

About The Lennox EL297UH070XE36BK

The Lennox EL297UH070XE36BK is an Elite Series two-stage gas furnace rated 66,000 BTU input and 65,000 BTU output on high fire at 97% AFUE. It comes in a 17.5-inch B cabinet, installs upflow or horizontal, and has a constant torque blower sized for 1.5 to 3 tons of add-on cooling.

Key specs

  • Heating: 66,000 BTU input, 65,000 BTU output, 97% AFUE, two-stage, 43,000 BTU input on low fire
  • Cabinet: B size, 17.5 inches wide, upflow or horizontal
  • Blower: 1/2 hp constant torque motor, 550 to 1,380 cfm, for 1.5 to 3 tons of cooling
  • Temperature rise: 35 to 65°F on high fire, 25 to 55°F on low fire

Reading the model number

EL is Lennox's Elite line, 2 means two-stage, 97 is the AFUE, and UH is upflow/horizontal. 070 is the 66,000 BTU input, X means it meets California's 40 ng/J NOx standard, E is the high efficiency constant torque blower motor, 36 is the nominal add-on cooling size, B is the 17.5-inch cabinet, and K means the furnace is ready for Lennox refrigerant detection.

What it pairs with

Coils with the same letter physically match the furnace, so you want a Lennox coil with B in its size code, such as a CK40CT, CK40HT, or CK40UT.

The AHRI Directory lists this furnace in certified systems with CK40CT, CK40HT, and CK40UT coils and Lennox EL15KC1, EL16KC1, EL18KCV, EL22KCV, ML13KC1, ML14KC1, and ML17KC2 air conditioners, plus EL16KP1, EL18KSLV, EL19KPV, EL21KLV, and ML14KP1 heat pumps. Your efficiency rating depends on the exact outdoor unit, coil, and furnace together.

Sizing and fit

Size the furnace from a Manual J load calculation. Filters and filter mounting aren't included, so plan for a filter rack.

Even with the X low NOx code, Lennox says this furnace series can't go in the South Coast and San Joaquin Valley air districts. It isn't certified for mobile homes, RVs, or outdoor installs.

Warranty and registration

HVAC USA is an authorized Lennox reseller, and everything we sell is new factory equipment. Your full Lennox warranty applies when a licensed, manufacturer-certified contractor installs your system and registers it within 60 days.

Shipping and help

Free shipping on major equipment from our Kansas City warehouse to every state and D.C. except Alaska, Hawaii, Washington, Oregon, and Idaho, where you pay the shipping rate shown at checkout. Call (913) 364-0070, Monday to Friday, 9am to 5pm CST, and we'll help you confirm sizing and an AHRI-matched pairing before you order.

Paired With

AHRI-matched equipment that works with this unit. Add a full system or individual pieces.

Filter matches

EL22KCV-036-230

SEER2 20.75

AHRI number 217886134

SEER
20.75
EER
12.8
Cooling
34600
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-036-230

SEER2 20.75

AHRI number 217886130

SEER
20.75
EER
12.8
Cooling
34600
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-036-230

SEER2 20.75

AHRI number 217886118

SEER
20.75
EER
12.8
Cooling
34800
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-036-230

SEER2 20.75

AHRI number 217886119

SEER
20.75
EER
13
Cooling
34600
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-036-230

SEER2 20.25

AHRI number 217886129

SEER
20.25
EER
12.4
Cooling
33600
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-036-230

SEER2 20.25

AHRI number 217886131

SEER
20.25
EER
12.4
Cooling
33600
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-036-230

SEER2 20.25

AHRI number 217886114

SEER
20.25
EER
12.4
Cooling
33200
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-036-230

SEER2 20.25

AHRI number 217886117

SEER
20.25
EER
12.6
Cooling
34200
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-024-230

SEER2 19.75

AHRI number 217885502

SEER
19.75
EER
14.2
Cooling
24200
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-024-230

SEER2 19.75

AHRI number 217885496

SEER
19.75
EER
14
Cooling
24000
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-024-230

SEER2 19.75

AHRI number 217885497

SEER
19.75
EER
14.2
Cooling
24200
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-024-230

SEER2 19.75

AHRI number 217885501

SEER
19.75
EER
13.8
Cooling
23600
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-024-230

SEER2 19.25

AHRI number 217885503

SEER
19.25
EER
13.8
Cooling
23400
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-024-230

SEER2 19.25

AHRI number 217885494

SEER
19.25
EER
13.8
Cooling
23600
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-036-230

SEER2 19.25

AHRI number 217886115

SEER
19.25
EER
12.2
Cooling
32800
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL18KCV-036-230

SEER2 19

AHRI number 217884060

SEER
19
EER
12.4
Cooling
36000
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL18KCV-036-230

SEER2 19

AHRI number 217884050

SEER
19
EER
12
Cooling
35200
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL21KLV-024-230

SEER2 19

AHRI number 217121543

SEER
19
EER
12.4
HSPF
9.8
Cooling
23200
Heating
24000
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-024-230

SEER2 18.75

AHRI number 217885495

SEER
18.75
EER
13.4
Cooling
22600
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL18KCV-036-230

SEER2 18.5

AHRI number 217884424

SEER
18.5
EER
11.7
Cooling
33600
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

Specifications

Specification Value
Manufacturer Lennox
SKU EL297UH070XE36BK
Product type Furnace
Furnace width 17.5"
Input (BTU/h) 66,000
AFUE (%) 97
Voltage 120
Phase 1
Frequency (Hz) 60
Electrical 120-1-60
Height (in) 33
Depth (in) 27.75
Shipping weight (lb) 132
Stages Two
Cabinet width (in) 17.5
Output (BTU/h) 65,000
Low-fire output (BTU/h) 42,000
Vent connection 2 in. intake / 2 in. exhaust (PVC)
Cabinet size letter B

Ordering

Detail Value
Lead time Ships from our Kansas City warehouse. Most in-stock items leave in 1 to 3 business days; special-order equipment is confirmed by phone before ship.
Freight note Ships residential freight (curbside). Will-call available at our Kansas City warehouse. Call (913) 364-0070 for liftgate, scheduling, or commercial delivery.

Documents

Spec sheet

Installation instructions
