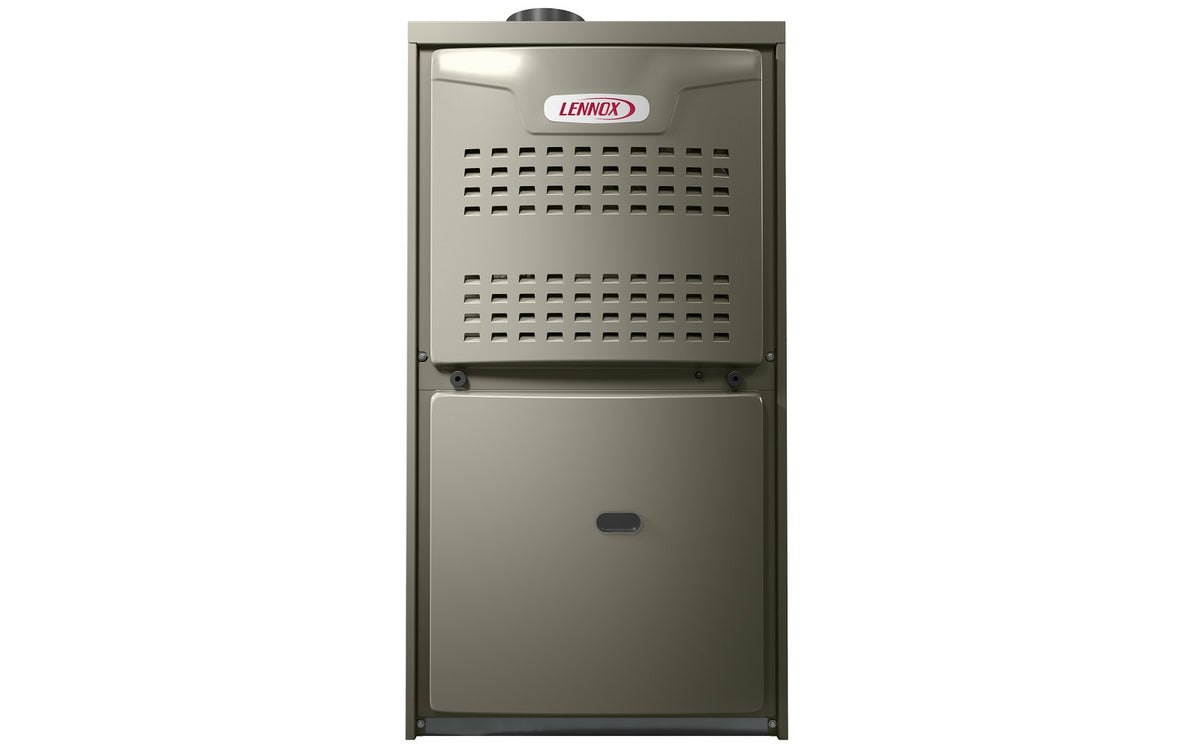

About The Lennox ML180UH045XE36AK
Description
The Lennox ML180UH045XE36AK is a Merit Series single-stage gas furnace rated 44,000 BTU input and 36,000 BTU output at 80% AFUE. It comes in a 14.5-inch A cabinet, installs upflow or horizontal, and has a constant torque blower sized for 1.5 to 3 tons of add-on cooling.
Key specs
- Heating: 44,000 BTU input, 36,000 BTU output, 80% AFUE, single-stage
- Cabinet: A size, 14.5 inches wide, upflow or horizontal (left or right)
- Blower: 1/2 hp constant torque motor, 350 to 1,380 cfm, for 1.5 to 3 tons of cooling
- Temperature rise: 15 to 45°F
Reading the model number
ML is Lennox's Merit line, 1 means single-stage, 80 is the AFUE, and UH is upflow/horizontal. 045 is the 44,000 BTU input, X means it meets California's 40 ng/J NOx standard, E is the high efficiency constant torque blower motor, 36 is the nominal add-on cooling size, A is the 14.5-inch cabinet, and K means the furnace is ready for Lennox refrigerant detection.
What it pairs with
Coils with the same letter physically match the furnace, so you want a Lennox coil with A in its size code, such as a CK40CT, CK40HT, or CK40UT.
The AHRI Directory lists this furnace in certified systems with CK40CT, CK40HT, and CK40UT coils and Lennox EL15KC1, EL16KC1, EL18KCV, EL22KCV, ML13KC1, ML14KC1, and ML17KC2 air conditioners, plus EL16KP1, EL18KSLV, EL19KPV, EL21KLV, and ML14KP1 heat pumps. Your efficiency rating depends on the exact outdoor unit, coil, and furnace together.
Sizing and fit
Not sure which size you need? Call or text (913) 364-0070 and we'll size it with you. Filters and filter mounting aren't included, so plan for a filter rack.
Even with the X low NOx code, Lennox says this furnace series can't go in the South Coast, San Joaquin Valley, and Bay Area air districts. It isn't certified for mobile homes, RVs, or outdoor installs.
Warranty and registration
HVAC USA is an authorized Lennox reseller, and everything we sell is new factory equipment. Your full Lennox warranty applies when a licensed, manufacturer-certified contractor installs your system and registers it within 60 days.
Compare related Lennox furnaces
Compare this furnace with other Lennox 80% AFUE furnaces, Lennox Merit furnaces, Lennox single-stage furnaces and Lennox 44,000 BTU furnaces. You can also browse all Lennox gas furnaces. Adding cooling? Pick a matching Lennox evaporator coil for the cabinet width.
Shipping and help
This item ships free from our Midwest warehouse to the lower 48 states and D.C., and so does the rest of your order, except to Washington, Oregon, and Idaho, where you pay the shipping rate shown at checkout. For Alaska, Hawaii, Puerto Rico, other U.S. territories, or an APO or FPO address, call or text us for a quote. Call (913) 364-0070, Monday to Friday, 9am to 5pm CST, and we'll help you confirm sizing and an AHRI-matched pairing before you order.
Paired With — AHRI-matched systems for Lennox ML180UH045XE36AK 80% AFUE 44,000 BTU 14.5" Wide Furnace
AHRI-matched equipment that works with this unit. Add a full system or individual pieces.
Filter matches
Coil
ML14KC1-018-230
AHRI number 215578596
ML14KC1-018-230
AHRI number 215578635
ML14KC1-018-230
AHRI number 215578676
ML14KC1-018-230
AHRI number 215578716
ML14KC1-018-230
AHRI number 215578768
ML14KC1-018-230
AHRI number 215578780
ML14KC1-018-230
AHRI number 215578814
ML14KC1-018-230
AHRI number 215578858
ML14KC1-024-230
AHRI number 215580197
ML14KC1-024-230
AHRI number 215580243
ML14KC1-024-230
AHRI number 215580295
ML14KC1-024-230
AHRI number 215580365
ML14KC1-024-230
AHRI number 215580457
ML14KC1-024-230
AHRI number 215580642
ML14KC1-024-230
AHRI number 215580672
ML14KC1-024-230
AHRI number 215580765
ML14KC1-024-230
AHRI number 215580885
ML14KC1-030-230
AHRI number 215581123
ML14KC1-030-230
AHRI number 215581195
Loading pairings
Those pairings didn't load. Try again.
No AHRI-matched systems for this filter.
Specifications
| Specification | Value |
|---|---|
| Manufacturer | Lennox |
| SKU | ML180UH045XE36AK |
| Product type | Furnace |
| Furnace width | 14.5" |
| Input (BTU/h) | 44,000 |
| AFUE (%) | 80 |
| Voltage | 120 |
| Phase | 1 |
| Frequency (Hz) | 60 |
| Electrical | 120-1-60 |
| Shipping weight (lb) | 111 |
| Stages | Single |
| Cabinet width (in) | 14.5 |
| Output (BTU/h) | 36,000 |
| Vent connection | 4 in. round flue connection |
| Cabinet size letter | A |
Ordering
| Detail | Value |
|---|---|
| Lead time | Ships from our Midwest warehouse. Most in-stock items ship in 2 to 5 business days; special-order equipment is confirmed by phone before ship. |
| Freight note | Ships residential freight (curbside) with liftgate delivery added automatically. Call or text (913) 364-0070 for scheduling or commercial delivery. |
