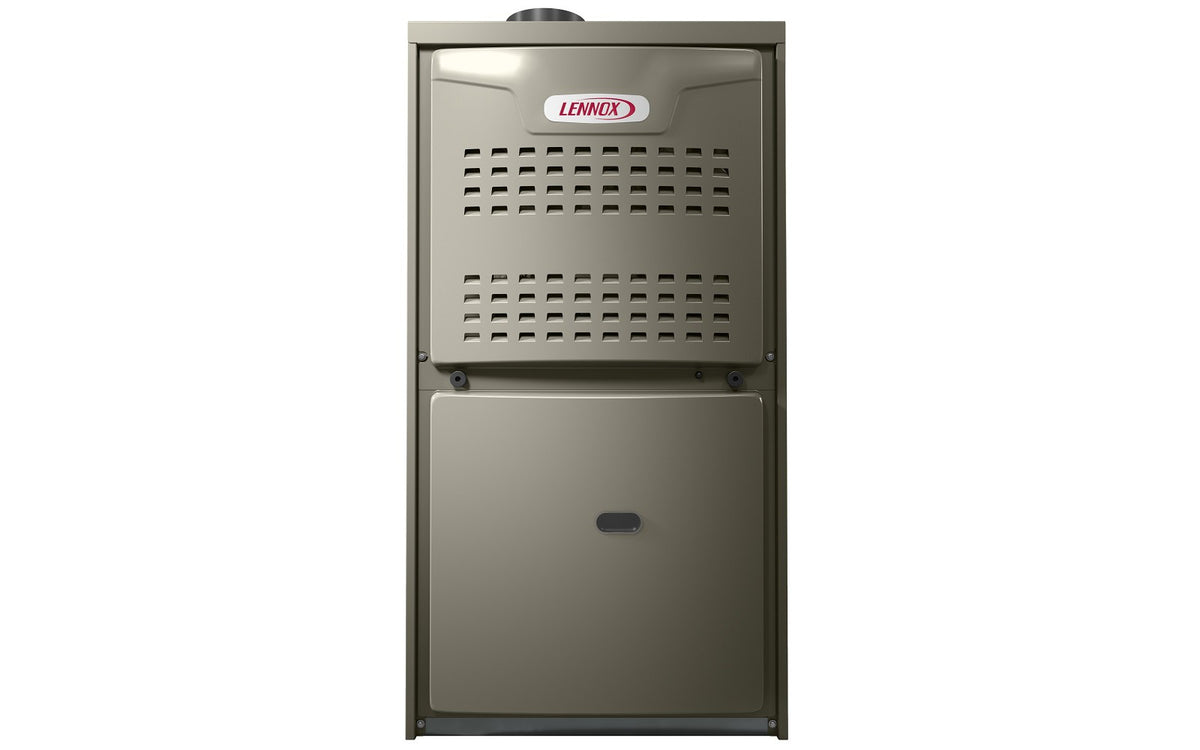

The Lennox ML180UH110E60CK is a Merit Series single-stage gas furnace rated 110,000 BTU input and 90,000 BTU output at 80% AFUE. It comes in a 21-inch C cabinet, installs upflow or horizontal, and has a constant torque blower sized for 3 to 5 tons of add-on cooling.
ML is Lennox's Merit line, 1 means single-stage, 80 is the AFUE, and UH is upflow/horizontal. 110 is the 110,000 BTU input, E is the high efficiency constant torque blower motor, 60 is the nominal add-on cooling size, C is the 21-inch cabinet, and K means the furnace is ready for Lennox refrigerant detection.
Coils with the same letter physically match the furnace, so you want a Lennox coil with C in its size code, such as a CK40CT, CK40HT, or CK40UT.
The AHRI Directory lists this furnace in certified systems with CK40CT, CK40HT, and CK40UT coils and Lennox EL15KC1, EL16KC1, EL18KCV, EL22KCV, ML13KC1, ML14KC1, and ML17KC2 air conditioners, plus EL16KP1, EL18KSLV, EL19KPV, EL21KLV, and ML14KP1 heat pumps. Your efficiency rating depends on the exact outdoor unit, coil, and furnace together.
Not sure which size you need? Call or text (913) 364-0070 and we'll size it with you. Filters and filter mounting aren't included, so plan for a filter rack.
This model doesn't carry the X low NOx code. For California, the ML180UH110XE60CK meets the state's 40 ng/J NOx standard, but Lennox says this furnace series can't go in the South Coast, San Joaquin Valley, and Bay Area air districts. It isn't certified for mobile homes, RVs, or outdoor installs.
HVAC USA is an authorized Lennox reseller, and everything we sell is new factory equipment. Your full Lennox warranty applies when a licensed, manufacturer-certified contractor installs your system and registers it within 60 days.
Compare this furnace with other Lennox 80% AFUE furnaces, Lennox Merit furnaces, Lennox single-stage furnaces and Lennox 110,000 BTU furnaces. You can also browse all Lennox gas furnaces. Adding cooling? Pick a matching Lennox evaporator coil for the cabinet width.
It ships from our Midwest warehouse to the lower 48 states and D.C. It ships free when your cart also has an item that ships free, except to Washington, Oregon, and Idaho. For Alaska, Hawaii, Puerto Rico, other U.S. territories, or an APO or FPO address, call or text us for a quote. Call (913) 364-0070, Monday to Friday, 9am to 5pm CST, and we'll help you confirm sizing and an AHRI-matched pairing before you order.
AHRI-matched equipment that works with this unit. Add a full system or individual pieces.
Filter matches
Coil
ML14KC1-047-230
Outdoor
ML14KC1-047-230
ML14KC1-047-230
Outdoor
ML14KC1-047-230
ML14KC1-047-230
Outdoor
ML14KC1-047-230
ML14KC1-047-230
Outdoor
ML14KC1-047-230
ML14KC1-047-230
Outdoor
ML14KC1-047-230
ML14KC1-047-230
Outdoor
ML14KC1-047-230
ML14KC1-047-230
Outdoor
ML14KC1-047-230
ML14KC1-047-230
Outdoor
ML14KC1-047-230
ML14KC1-047-230
Outdoor
ML14KC1-047-230
ML14KC1-048-230
Outdoor
ML14KC1-048-230
ML14KC1-048-230
Outdoor
ML14KC1-048-230
ML14KC1-048-230
Outdoor
ML14KC1-048-230
ML14KC1-030-230
Outdoor
ML14KC1-030-230
ML14KC1-048-230
Outdoor
ML14KC1-048-230
ML14KC1-048-230
Outdoor
ML14KC1-048-230
ML14KC1-048-230
Outdoor
ML14KC1-048-230
ML14KC1-048-230
Outdoor
ML14KC1-048-230
ML14KC1-048-230
Outdoor
ML14KC1-048-230
ML14KC1-048-230
Outdoor
ML14KC1-048-230
ML14KC1-030-230
Outdoor
ML14KC1-030-230
Loading pairings
Those pairings didn't load. Try again.
No AHRI-matched systems for this filter.
| Specification | Value |
|---|---|
| Manufacturer | Lennox |
| SKU | ML180UH110E60CK |
| Product type | Furnace |
| Furnace width | 21" |
| Input (BTU/h) | 110,000 |
| AFUE (%) | 80 |
| Voltage | 120 |
| Phase | 1 |
| Frequency (Hz) | 60 |
| Electrical | 120-1-60 |
| MOCP | 15 |
| Height (in) | 33 |
| Depth (in) | 27.75 |
| Shipping weight (lb) | 160 |
| Stages | Single |
| Cabinet width (in) | 21 |
| Output (BTU/h) | 90,000 |
| Vent connection | 4 in. round flue connection |
| Cabinet size letter | C |
| Detail | Value |
|---|---|
| Lead time | Ships from our Midwest warehouse. Most in-stock items leave in 1 to 3 business days; special-order equipment is confirmed by phone before ship. |
| Freight note | Ships residential freight (curbside) with liftgate delivery added automatically. Call or text (913) 364-0070 for scheduling or commercial delivery. |
