Lennox CK40DT-42B-71 17.5" Width 42,000 BTU Coil

Lennox CK40DT-42B-71 17.5" Width 42,000 BTU Coil

CK40DT-42B-71

In stock

  • Lennox CK40DT-42B-71 17.5" Width 42,000 BTU Coil

Cased downflow R-454B coil for 3.5 ton systems that fits 17.5-inch B cabinet Lennox furnaces. Call (913) 364-0070 to confirm your match.

  • Fast shipping
  • Expert phone help
  • Manufacturer warranty
  • AHRI-matched pairings
  • Licensed startup required
$1,546.27
$1,546.27
Sale Sold out
Shipping calculated at checkout.
Call Text

We Accept

  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Shop by size and efficiency

Outdoor units in the same size

View full details

About The Lennox CK40DT-42B-71

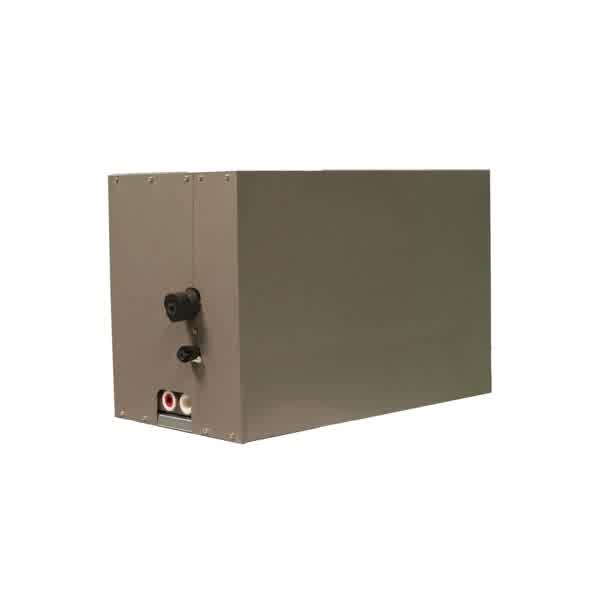

The Lennox CK40DT-42B-71 is a cased downflow evaporator coil for 3.5 ton R-454B systems, with a factory-installed R-454B expansion valve. It fits a 17.5-inch B cabinet Lennox furnace.

Key specs

  • Capacity: 3.5 tons nominal
  • Refrigerant: R-454B only, with a refrigerant detection sensor installed at the factory
  • Cabinet: B size, 17.5 inches wide
  • Connections: 7/8-inch suction and 3/8-inch liquid, sweat, plus two 3/4-inch FPT condensate drains on an anti-microbial drain pan
  • Construction: Lennox Quantum coil with aluminum tubing and ripple-edged aluminum fins

Reading the model number

The first C means indoor coil, K means R-454B, and 40 is the Quantum coil series. The D after 40 is the downflow cased cabinet, T is the factory expansion valve, 42 is the 3.5 ton size, B is the 17.5-inch cabinet that matches B furnaces, and 71 means R-454B only.

What it pairs with

It lines up with Lennox furnaces that carry the B cabinet letter. The AHRI Directory lists it with these Lennox units we sell: EL15KC1, EL16KC1, EL18KCV, EL22KCV, ML13KC1, ML14KC1, and ML17KC2 air conditioners and EL16KP1, EL18KSLV, EL19KPV, and ML14KP1 heat pumps. The best listed match we carry is the EL19KPV-024-230 heat pump on an EL297DF045XV36B furnace, at 20 SEER2.

Sizing and fit

Choose the size to match your outdoor unit's tonnage, and the cabinet letter to match your furnace. If your furnace has no built-in RDS mitigation control, it needs Lennox's RDS blower control board, ordered separately. Have your outdoor unit's model number ready when you call, and we'll check it against Lennox's AHRI matchups.

Warranty and registration

HVAC USA is an authorized Lennox reseller, and everything we sell is new factory equipment. Your full Lennox warranty applies when a licensed, manufacturer-certified contractor installs your system and registers it within 60 days.

Shipping and help

It ships from our Kansas City warehouse. Call (913) 364-0070, Monday to Friday, 9am to 5pm CST, and we'll help you confirm sizing and an AHRI-matched pairing before you order.

Paired With

AHRI-matched equipment that works with this unit. Add a full system or individual pieces.

Filter matches

EL19KPV-024-230

SEER2 20

AHRI number 217507615

SEER
20
EER
13
HSPF
9
Cooling
23800
Heating
24000
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL19KPV-024-230

SEER2 19.5

AHRI number 217507616

SEER
19.5
EER
12.8
HSPF
9
Cooling
23800
Heating
25400
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-036-230

SEER2 19.25

AHRI number 217886221

SEER
19.25
EER
12.3
Cooling
34600
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-036-230

SEER2 19.25

AHRI number 217886222

SEER
19.25
EER
12.5
Cooling
34800
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-036-230

SEER2 19.25

AHRI number 217886126

SEER
19.25
EER
12.4
Cooling
34200
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-024-230

SEER2 18.75

AHRI number 217885500

SEER
18.75
EER
14
Cooling
23800
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL19KPV-024-230

SEER2 18.5

AHRI number 217507614

SEER
18.5
EER
12.6
HSPF
8.5
Cooling
24000
Heating
25600
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL18KSLV-036-230

SEER2 18.3

AHRI number 217449943

SEER
18.3
EER
11
HSPF
9
Cooling
35200
Heating
36000
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL18KCV-036-230

SEER2 18

AHRI number 217884546

SEER
18
EER
11.7
Cooling
34200
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL18KCV-036-230

SEER2 18

AHRI number 217884437

SEER
18
EER
11.7
Cooling
34200
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL18KCV-036-230

SEER2 18

AHRI number 217884231

SEER
18
EER
11.7
Cooling
34600
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL18KSLV-036-230

SEER2 17.95

AHRI number 217449944

SEER
17.95
EER
11
HSPF
9
Cooling
35200
Heating
36000
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL18KSLV-036-230

SEER2 17.9

AHRI number 217189884

SEER
17.9
EER
11
HSPF
9
Cooling
35000
Heating
35800
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL18KSLV-036-230

SEER2 17.85

AHRI number 217189886

SEER
17.85
EER
11
HSPF
9
Cooling
35000
Heating
35800
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL18KCV-036-230

SEER2 17.75

AHRI number 217884253

SEER
17.75
EER
11.4
Cooling
34800
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-048-230

SEER2 17.75

AHRI number 217886532

SEER
17.75
EER
13.4
Cooling
45500
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL18KSLV-036-230

SEER2 17.65

AHRI number 217449947

SEER
17.65
EER
11
HSPF
9
Cooling
35000
Heating
36000
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL18KSLV-036-230

SEER2 17.6

AHRI number 217449942

SEER
17.6
EER
11
HSPF
9
Cooling
35000
Heating
35800
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL18KSLV-036-230

SEER2 17.6

AHRI number 217509778

SEER
17.6
EER
11
HSPF
9
Cooling
35200
Heating
36000
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL18KSLV-036-230

SEER2 17.55

AHRI number 217449941

SEER
17.55
EER
11
HSPF
9
Cooling
34600
Heating
35600
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

Specifications

Specification Value
Manufacturer Lennox
SKU CK40DT-42B-71
Product type Evaporator Coil
Coil width 17.5"
Capacity (tons) 3.5
Capacity (BTU) 42,000
Shipping weight (lb) 65
Refrigerant R-454B
Cabinet width (in) 17.5
Cabinet size letter B

Ordering

Detail Value
Lead time Ships from our Kansas City warehouse. Most in-stock items leave in 1 to 3 business days; special-order equipment is confirmed by phone before ship.
Freight note Ships residential freight (curbside). Will-call available at our Kansas City warehouse. Call (913) 364-0070 for liftgate, scheduling, or commercial delivery.

Documents

Spec sheet
