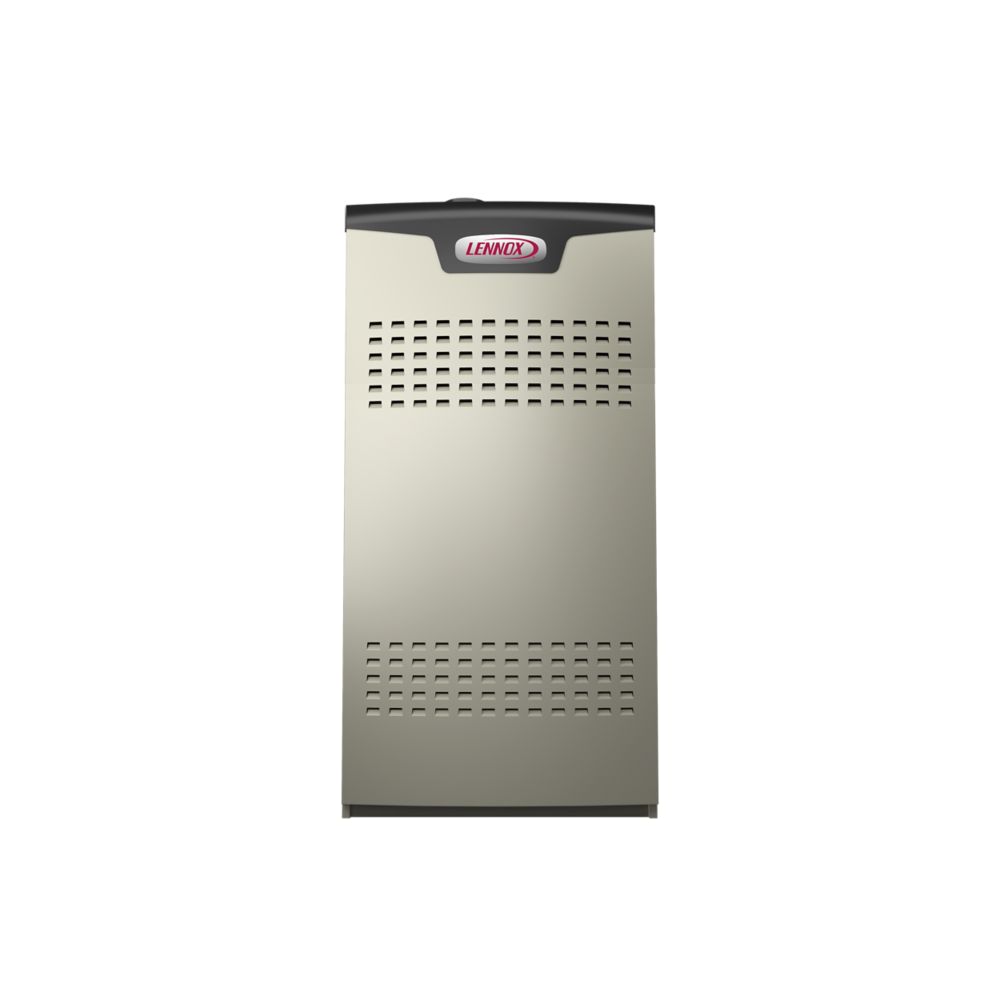

About The Lennox EL195UH100NE60CK
Description
The Lennox EL195UH100NE60CK is an Elite Series single-stage gas furnace rated 100,000 BTU input and 97,000 BTU output at 95% AFUE. It comes in a 21-inch C cabinet, installs upflow or horizontal, and has a constant torque blower sized for 3.5 to 5 tons of add-on cooling.
Key specs
- Heating: 100,000 BTU input, 97,000 BTU output, 95% AFUE, single-stage
- Cabinet: C size, 21 inches wide, upflow or horizontal (left or right)
- Blower: 1 hp constant torque motor, 1,260 to 2,405 cfm, for 3.5 to 5 tons of cooling
- Temperature rise: 45 to 75°F
Reading the model number
EL is Lennox's Elite line, 1 means single-stage, 95 is the AFUE, and UH is upflow/horizontal. 100 is the 100,000 BTU input, N means it meets California's 14 ng/J NOx standard, E is the high efficiency constant torque blower motor, 60 is the nominal add-on cooling size, C is the 21-inch cabinet, and K means the furnace is ready for Lennox refrigerant detection.
What it pairs with
Coils with the same letter physically match the furnace, so you want a Lennox coil with C in its size code, such as a CK40CT, CK40HT, or CK40UT.
The AHRI Directory lists this furnace in certified systems with CK40CT, CK40HT, and CK40UT coils and Lennox EL16KC1, EL18KCV, EL22KCV, ML14KC1, and ML17KC2 air conditioners, plus EL16KP1, EL18KSLV, EL19KPV, EL21KLV, and ML14KP1 heat pumps. Your efficiency rating depends on the exact outdoor unit, coil, and furnace together.
Sizing and fit
Not sure which size you need? Call or text (913) 364-0070 and we'll size it with you. Filters and filter mounting aren't included, so plan for a filter rack.
Because it meets the 14 ng/J limit, Lennox approves it for the South Coast, San Joaquin Valley, and Bay Area air districts. It isn't certified for mobile homes, RVs, or outdoor installs.
Warranty and registration
HVAC USA is an authorized Lennox reseller, and everything we sell is new factory equipment. Your full Lennox warranty applies when a licensed, manufacturer-certified contractor installs your system and registers it within 60 days.
Shipping and help
This item ships free from our Midwest warehouse to the lower 48 states and D.C., and so does the rest of your order, except to Washington, Oregon, and Idaho, where you pay the shipping rate shown at checkout. For Alaska, Hawaii, Puerto Rico, other U.S. territories, or an APO or FPO address, call or text us for a quote. Call (913) 364-0070, Monday to Friday, 9am to 5pm CST, and we'll help you confirm sizing and an AHRI-matched pairing before you order.
Paired With — AHRI-matched systems for Lennox EL195UH100NE60CK 95% AFUE 100,000 BTU 21" Wide Furnace
AHRI-matched equipment that works with this unit. Add a full system or individual pieces.
Filter matches
Coil
EL16KP1-030-230
AHRI number 215712822
ML14KP1-036-230
AHRI number 215735645
ML14KP1-036-230
AHRI number 215735715
EL16KP1-036-230
AHRI number 215739645
EL16KP1-036-230
AHRI number 215739715
ML14KP1-042-230
AHRI number 215740001
ML14KP1-042-230
AHRI number 215740041
EL16KP1-042-230
AHRI number 215740161
EL16KP1-042-230
AHRI number 215740201
ML14KP1-048-230
AHRI number 215746609
ML14KP1-048-230
AHRI number 215746673
EL16KP1-048-230
AHRI number 215756537
EL16KP1-048-230
AHRI number 215756698
ML14KP1-036-230
AHRI number 216021149
ML14KP1-036-230
AHRI number 216021204
EL16KP1-036-230
AHRI number 216030341
EL16KP1-036-230
AHRI number 216030396
ML14KC1-059-230
AHRI number 216372778
ML14KC1-047-230
AHRI number 216835618
Loading pairings
Those pairings didn't load. Try again.
No AHRI-matched systems for this filter.
Specifications
| Specification | Value |
|---|---|
| Manufacturer | Lennox |
| SKU | EL195UH100NE60CK |
| Product type | Furnace |
| Furnace width | 21" |
| Input (BTU/h) | 100,000 |
| AFUE (%) | 95 |
| Voltage | 120 |
| Phase | 1 |
| Frequency (Hz) | 60 |
| Electrical | 120-1-60 |
| MOCP | 15 |
| Height (in) | 33 |
| Depth (in) | 27.75 |
| Shipping weight (lb) | 157 |
| Stages | Single |
| Cabinet width (in) | 21 |
| Output (BTU/h) | 97,000 |
| Vent connection | 2 in. intake / 2 in. exhaust (PVC) |
| Cabinet size letter | C |
Ordering
| Detail | Value |
|---|---|
| Lead time | Ships from our Midwest warehouse. Most in-stock items ship in 2 to 5 business days; special-order equipment is confirmed by phone before ship. |
| Freight note | Ships residential freight (curbside) with liftgate delivery added automatically. Call or text (913) 364-0070 for scheduling or commercial delivery. |
