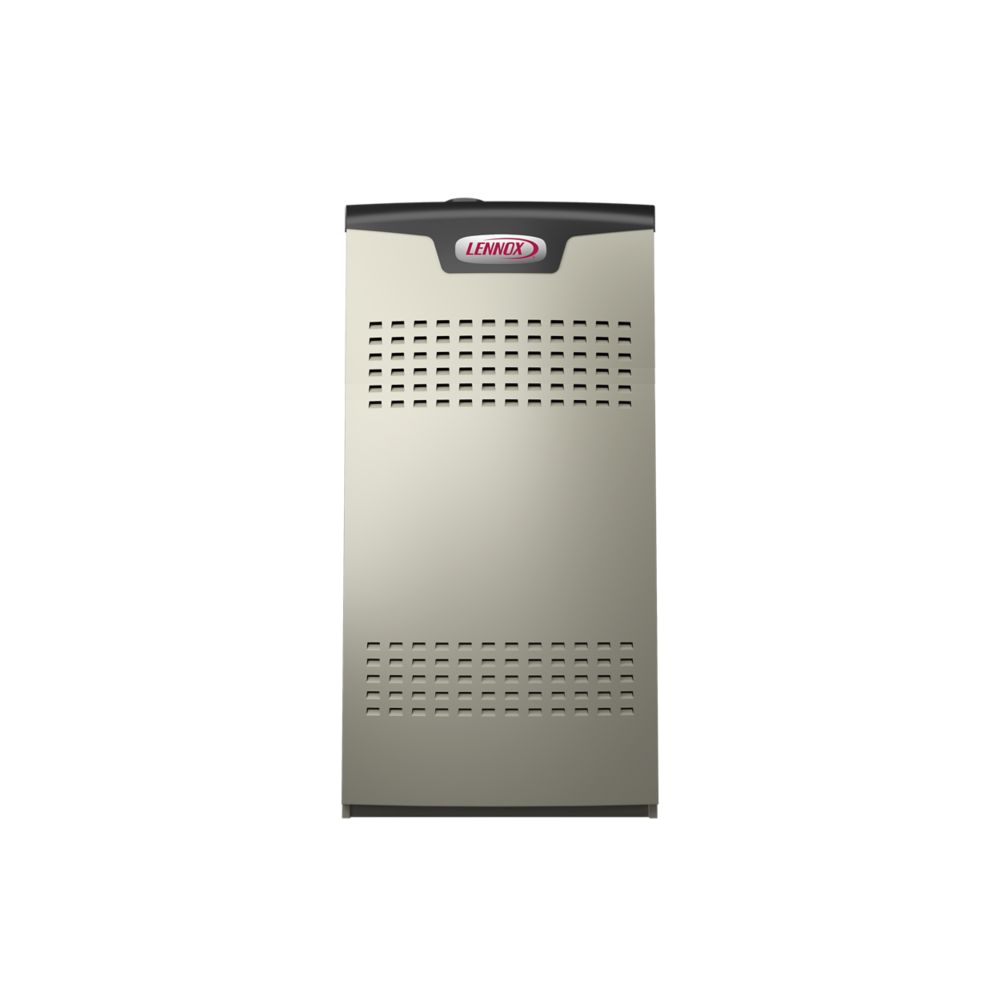

About The Lennox EL196UH110XE60CK
Description
The Lennox EL196UH110XE60CK is an Elite Series single-stage gas furnace rated 110,000 BTU input and 107,000 BTU output at 96% AFUE. It comes in a 21-inch C cabinet, installs upflow or horizontal, and has a constant torque blower sized for 3 to 5 tons of add-on cooling.
Key specs
- Heating: 110,000 BTU input, 107,000 BTU output, 96% AFUE, single-stage
- Cabinet: C size, 21 inches wide, upflow or horizontal
- Blower: 1 hp constant torque motor, 1,055 to 2,220 cfm, for 3 to 5 tons of cooling
- Temperature rise: 45 to 75°F
Reading the model number
EL is Lennox's Elite line, 1 means single-stage, 96 is the AFUE, and UH is upflow/horizontal. 110 is the 110,000 BTU input, X means it meets California's 40 ng/J NOx standard, E is the high efficiency constant torque blower motor, 60 is the nominal add-on cooling size, C is the 21-inch cabinet, and K means the furnace is ready for Lennox refrigerant detection.
What it pairs with
Coils with the same letter physically match the furnace, so you want a Lennox coil with C in its size code, such as a CK40CT, CK40HT, or CK40UT.
The AHRI Directory lists this furnace in certified systems with CK40CT, CK40HT, and CK40UT coils and Lennox EL15KC1, EL16KC1, EL18KCV, EL22KCV, ML13KC1, ML14KC1, and ML17KC2 air conditioners, plus EL16KP1, EL18KSLV, EL19KPV, EL21KLV, and ML14KP1 heat pumps. Your efficiency rating depends on the exact outdoor unit, coil, and furnace together.
Sizing and fit
Not sure which size you need? Call or text (913) 364-0070 and we'll size it with you. Filters and filter mounting aren't included, so plan for a filter rack.
Even with the X low NOx code, Lennox says this furnace series can't go in the South Coast, San Joaquin Valley, and Bay Area air districts. It isn't certified for mobile homes, RVs, or outdoor installs.
Warranty and registration
HVAC USA is an authorized Lennox reseller, and everything we sell is new factory equipment. Your full Lennox warranty applies when a licensed, manufacturer-certified contractor installs your system and registers it within 60 days.
Shipping and help
This item ships free from our Midwest warehouse to the lower 48 states and D.C., and so does the rest of your order, except to Washington, Oregon, and Idaho, where you pay the shipping rate shown at checkout. For Alaska, Hawaii, Puerto Rico, other U.S. territories, or an APO or FPO address, call or text us for a quote. Call (913) 364-0070, Monday to Friday, 9am to 5pm CST, and we'll help you confirm sizing and an AHRI-matched pairing before you order.
Paired With — AHRI-matched systems for Lennox EL196UH110XE60CK 96% AFUE 110,000 BTU 21" Wide Furnace
AHRI-matched equipment that works with this unit. Add a full system or individual pieces.
Filter matches
Coil
ML14KC1-047-230
AHRI number 215580535
ML14KC1-047-230
AHRI number 215580599
ML14KC1-047-230
AHRI number 215580665
ML14KC1-047-230
AHRI number 215580810
ML14KC1-047-230
AHRI number 215580898
ML14KC1-047-230
AHRI number 215581004
ML14KC1-047-230
AHRI number 215581045
ML14KC1-047-230
AHRI number 215581078
ML14KC1-048-230
AHRI number 215581210
ML14KC1-048-230
AHRI number 215581276
ML14KC1-048-230
AHRI number 215581339
ML14KC1-030-230
AHRI number 215581388
ML14KC1-048-230
AHRI number 215581403
ML14KC1-048-230
AHRI number 215581543
ML14KC1-048-230
AHRI number 215581615
ML14KC1-048-230
AHRI number 215581718
ML14KC1-048-230
AHRI number 215581780
ML14KC1-048-230
AHRI number 215581845
ML14KC1-030-230
AHRI number 215581965
Loading pairings
Those pairings didn't load. Try again.
No AHRI-matched systems for this filter.
Specifications
| Specification | Value |
|---|---|
| Manufacturer | Lennox |
| SKU | EL196UH110XE60CK |
| Product type | Furnace |
| Furnace width | 21" |
| Input (BTU/h) | 110,000 |
| AFUE (%) | 96 |
| Voltage | 120 |
| Phase | 1 |
| Frequency (Hz) | 60 |
| Electrical | 120-1-60 |
| MOCP | 15 |
| Height (in) | 33 |
| Depth (in) | 27.75 |
| Shipping weight (lb) | 170 |
| Stages | Single |
| Cabinet width (in) | 21 |
| Output (BTU/h) | 107,000 |
| Vent connection | 2 in. intake / 2 in. exhaust (PVC) |
| Cabinet size letter | C |
