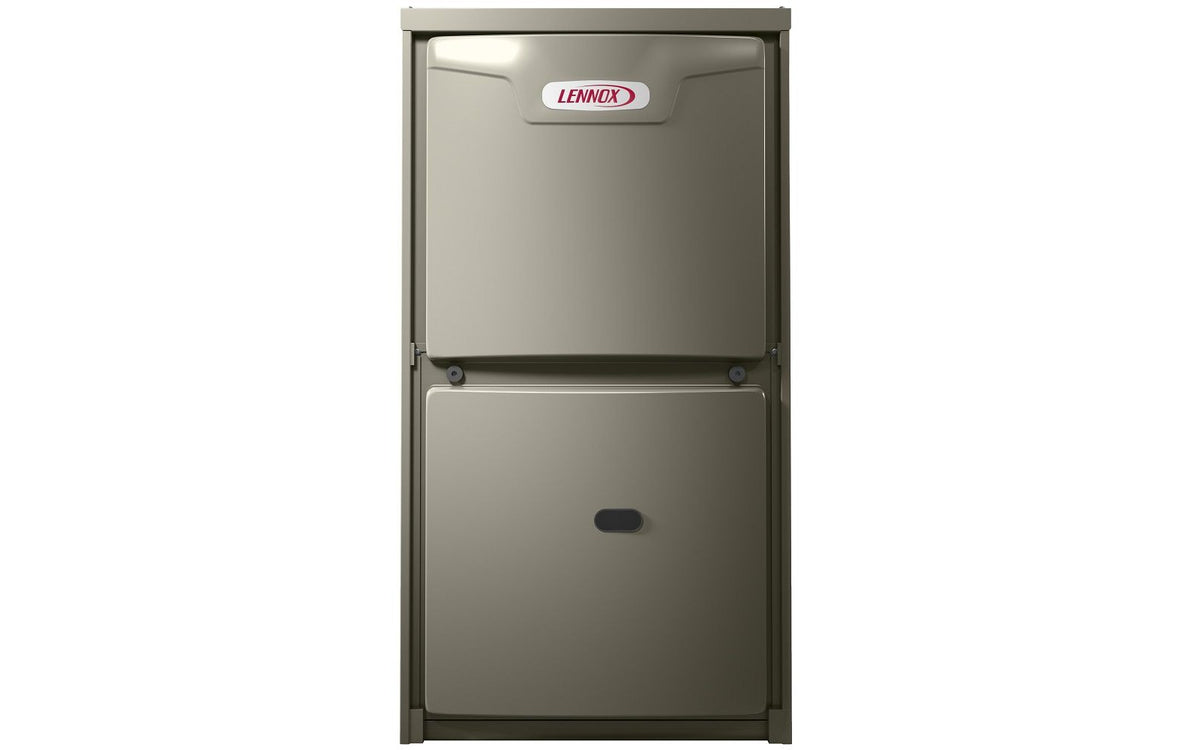

Lennox ML196UH135XE60DK 96% AFUE 132,000 BTU 24.5" Wide Furnace

Lennox ML196UH135XE60DK 96% AFUE 132,000 BTU 24.5" Wide Furnace

ML196UH135XE60DK

In stock

Merit single-stage gas furnace: 132,000 BTU input at 96% AFUE in a 24.5-inch D cabinet that fits D-size Lennox coils. Call (913) 364-0070 to confirm your match.

  • Fast shipping
  • Expert phone help
  • Manufacturer warranty
  • AHRI-matched pairings
  • Licensed contractor install required for warranty
$2,801.49
$2,801.49
Sale Sold out
Free shipping Ships free from our Kansas City warehouse to every state and D.C. except Alaska, Hawaii, Washington, Oregon, and Idaho, where you pay the shipping rate shown at checkout. For Puerto Rico, other U.S. territories, or areas that need ferry or air freight, call (913) 364-0070 for a quote.
Call Text

We Accept

  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Shop by size and efficiency

View full details

About The Lennox ML196UH135XE60DK

The Lennox ML196UH135XE60DK is a Merit Series single-stage gas furnace rated 132,000 BTU input and 127,000 BTU output at 96% AFUE. It comes in a 24.5-inch D cabinet, installs upflow or horizontal, and has a constant torque blower sized for 3 to 5 tons of add-on cooling.

Key specs

  • Heating: 132,000 BTU input, 127,000 BTU output, 96% AFUE, single-stage
  • Cabinet: D size, 24.5 inches wide, upflow or horizontal
  • Blower: 1 hp constant torque motor, 1,310 to 2,400 cfm, for 3 to 5 tons of cooling
  • Temperature rise: 45 to 75°F

Reading the model number

ML is Lennox's Merit line, 1 means single-stage, 96 is the AFUE, and UH is upflow/horizontal. 135 is the 132,000 BTU input, X means it meets California's 40 ng/J NOx standard, E is the high efficiency constant torque blower motor, 60 is the nominal add-on cooling size, D is the 24.5-inch cabinet, and K means the furnace is ready for Lennox refrigerant detection.

What it pairs with

Coils with the same letter physically match the furnace, so you want a Lennox coil with D in its size code, such as a CK40CT, CK40HT, or CK40UT.

The AHRI Directory lists this furnace in certified systems with CK40CT, CK40HT, and CK40UT coils and Lennox EL15KC1, EL16KC1, EL18KCV, EL22KCV, ML13KC1, ML14KC1, and ML17KC2 air conditioners, plus EL16KP1, EL18KSLV, EL19KPV, EL21KLV, and ML14KP1 heat pumps. Your efficiency rating depends on the exact outdoor unit, coil, and furnace together.

Sizing and fit

Size the furnace from a Manual J load calculation. Filters and filter mounting aren't included, so plan for a filter rack.

Even with the X low NOx code, Lennox says this furnace series can't go in the South Coast, San Joaquin Valley, and Bay Area air districts. It isn't certified for mobile homes, RVs, or outdoor installs.

Warranty and registration

HVAC USA is an authorized Lennox reseller, and everything we sell is new factory equipment. Your full Lennox warranty applies when a licensed, manufacturer-certified contractor installs your system and registers it within 60 days.

Shipping and help

Free shipping on major equipment from our Kansas City warehouse to every state and D.C. except Alaska, Hawaii, Washington, Oregon, and Idaho, where you pay the shipping rate shown at checkout. Call (913) 364-0070, Monday to Friday, 9am to 5pm CST, and we'll help you confirm sizing and an AHRI-matched pairing before you order.

Paired With

AHRI-matched equipment that works with this unit. Add a full system or individual pieces.

Filter matches

EL21KLV-060-230

SEER2 18.5

AHRI number 217121524

SEER
18.5
EER
11.7
HSPF
8.5
Cooling
53500
Heating
52500
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL18KCV-060-230

SEER2 18

AHRI number 217884954

SEER
18
EER
11.5
Cooling
58000
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL21KLV-048-230

SEER2 18

AHRI number 217121626

SEER
18
EER
12.4
HSPF
8.5
Cooling
47500
Heating
46000
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL21KLV-048-230

SEER2 17.5

AHRI number 217121636

SEER
17.5
EER
12.2
HSPF
9
Cooling
48000
Heating
48000
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL21KLV-060-230

SEER2 17.5

AHRI number 217121501

SEER
17.5
EER
11.7
HSPF
8.5
Cooling
54500
Heating
52500
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-048-230

SEER2 17.25

AHRI number 217886391

SEER
17.25
EER
12.8
Cooling
46500
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-060-230

SEER2 17.25

AHRI number 217886751

SEER
17.25
EER
11.7
Cooling
55500
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-060-230

SEER2 17.25

AHRI number 217886665

SEER
17.25
EER
11.7
Cooling
56000
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL18KCV-060-230

SEER2 17

AHRI number 217885141

SEER
17
EER
11
Cooling
54500
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-048-230

SEER2 16.75

AHRI number 217886466

SEER
16.75
EER
12.6
Cooling
46000
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL16KC1-041-230

SEER2 16.5

AHRI number 215662022

SEER
16.5
EER
13
Cooling
41500
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL16KC1-041-230

SEER2 16.5

AHRI number 215661678

SEER
16.5
EER
13.8
Cooling
42000
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

ML14KC1-041-230

SEER2 16.5

AHRI number 215583832

SEER
16.5
EER
13
Cooling
41500
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

ML14KC1-041-230

SEER2 16.5

AHRI number 215583488

SEER
16.5
EER
13.8
Cooling
42000
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL18KCV-048-230

SEER2 16

AHRI number 217884785

SEER
16
EER
12
Cooling
47500
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL18KCV-048-230

SEER2 16

AHRI number 217884759

SEER
16
EER
12.2
Cooling
48000
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL19KPV-060-230

SEER2 16

AHRI number 217194556

SEER
16
EER
10
HSPF
7.8
Cooling
57000
Heating
55500
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL18KSLV-060-230

SEER2 15.7

AHRI number 217450073

SEER
15.7
EER
10
HSPF
8.1
Cooling
53500
Heating
54500
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL16KC1-042-230

SEER2 15.6

AHRI number 215662293

SEER
15.6
EER
13
Cooling
42000
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

ML14KC1-042-230

SEER2 15.6

AHRI number 215584103

SEER
15.6
EER
13
Cooling
42000
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

Specifications

Specification Value
Manufacturer Lennox
SKU ML196UH135XE60DK
Product type Furnace
Furnace width 24.5"
Input (BTU/h) 132,000
AFUE (%) 96
Voltage 120
Phase 1
Frequency (Hz) 60
Electrical 120-1-60
Height (in) 33
Depth (in) 27.75
Shipping weight (lb) 174
Stages Single
Cabinet width (in) 24.5
Output (BTU/h) 127,000
Vent connection 2 in. intake / 2 in. exhaust (PVC)
Cabinet size letter D

Ordering

Detail Value
Lead time Ships from our Kansas City warehouse. Most in-stock items leave in 1 to 3 business days; special-order equipment is confirmed by phone before ship.
Freight note Ships residential freight (curbside). Will-call available at our Kansas City warehouse. Call (913) 364-0070 for liftgate, scheduling, or commercial delivery.

Documents

Spec sheet
