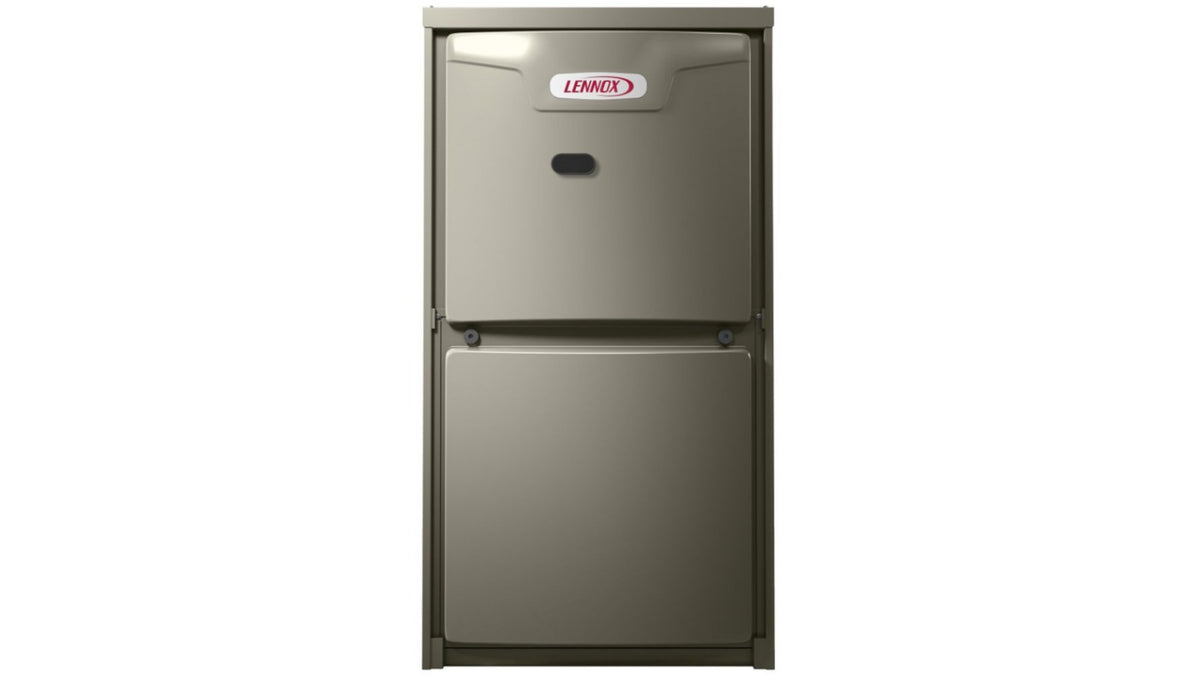

Lennox ML296UH070XV36BK 96% AFUE 66,000 BTU 17.5" Wide Furnace

Lennox ML296UH070XV36BK 96% AFUE 66,000 BTU 17.5" Wide Furnace

ML296UH070XV36BK

In stock

Merit two-stage gas furnace: 66,000 BTU input at 96% AFUE in a 17.5-inch B cabinet that fits B-size Lennox coils. Call (913) 364-0070 to confirm your match.

  • Fast shipping
  • Expert phone help
  • Manufacturer warranty
  • AHRI-matched pairings
  • Licensed contractor install required for warranty
$2,708.96
$2,708.96
Sale Sold out
Free shipping Ships free from our Kansas City warehouse to every state and D.C. except Alaska, Hawaii, Washington, Oregon, and Idaho, where you pay the shipping rate shown at checkout. For Puerto Rico, other U.S. territories, or areas that need ferry or air freight, call (913) 364-0070 for a quote.
Call Text

We Accept

  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Shop by size and efficiency

View full details

About The Lennox ML296UH070XV36BK

The Lennox ML296UH070XV36BK is a Merit Series two-stage gas furnace rated 66,000 BTU input and 62,000 BTU output on high fire at 96% AFUE. It comes in a 17.5-inch B cabinet, installs upflow or horizontal, and has a variable speed blower sized for 2 to 3 tons of add-on cooling.

Key specs

  • Heating: 66,000 BTU input, 62,000 BTU output, 96% AFUE, two-stage, 43,000 BTU input on low fire
  • Cabinet: B size, 17.5 inches wide, upflow or horizontal
  • Blower: 1/2 hp variable speed motor, 500 to 1,365 cfm, for 2 to 3 tons of cooling
  • Temperature rise: 50 to 80°F on high fire, 25 to 55°F on low fire

Reading the model number

ML is Lennox's Merit line, 2 means two-stage, 96 is the AFUE, and UH is upflow/horizontal. 070 is the 66,000 BTU input, X means it meets California's 40 ng/J NOx standard, V is the variable speed blower motor, 36 is the nominal add-on cooling size, B is the 17.5-inch cabinet, and K means the furnace is ready for Lennox refrigerant detection.

What it pairs with

Coils with the same letter physically match the furnace, so you want a Lennox coil with B in its size code, such as a CK40CT, CK40HT, or CK40UT.

The AHRI Directory lists this furnace in certified systems with CK40CT, CK40HT, and CK40UT coils and Lennox EL15KC1, EL16KC1, EL18KCV, EL22KCV, ML13KC1, ML14KC1, and ML17KC2 air conditioners, plus EL16KP1, EL18KSLV, EL19KPV, EL21KLV, and ML14KP1 heat pumps. Your efficiency rating depends on the exact outdoor unit, coil, and furnace together.

Sizing and fit

Size the furnace from a Manual J load calculation. Filters and filter mounting aren't included, so plan for a filter rack.

Even with the X low NOx code, Lennox says this furnace series can't go in the South Coast, San Joaquin Valley, and Bay Area air districts. It isn't certified for mobile homes, RVs, or outdoor installs.

Warranty and registration

HVAC USA is an authorized Lennox reseller, and everything we sell is new factory equipment. Your full Lennox warranty applies when a licensed, manufacturer-certified contractor installs your system and registers it within 60 days.

Shipping and help

Free shipping on major equipment from our Kansas City warehouse to every state and D.C. except Alaska, Hawaii, Washington, Oregon, and Idaho, where you pay the shipping rate shown at checkout. Call (913) 364-0070, Monday to Friday, 9am to 5pm CST, and we'll help you confirm sizing and an AHRI-matched pairing before you order.

Paired With

AHRI-matched equipment that works with this unit. Add a full system or individual pieces.

Filter matches

EL22KCV-024-230

SEER2 19.75

AHRI number 217885490

SEER
19.75
EER
14.4
Cooling
24200
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-024-230

SEER2 19.75

AHRI number 217885317

SEER
19.75
EER
14.2
Cooling
24000
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL21KLV-024-230

SEER2 19.5

AHRI number 217121560

SEER
19.5
EER
12.8
HSPF
9.6
Cooling
23000
Heating
24000
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-024-230

SEER2 19.25

AHRI number 217885411

SEER
19.25
EER
13.8
Cooling
23200
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-024-230

SEER2 19.25

AHRI number 217885378

SEER
19.25
EER
14.2
Cooling
24000
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-024-230

SEER2 19.25

AHRI number 217885346

SEER
19.25
EER
13.8
Cooling
23400
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-024-230

SEER2 19.25

AHRI number 217885281

SEER
19.25
EER
14
Cooling
23800
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL19KPV-024-230

SEER2 19

AHRI number 217194152

SEER
19
EER
13
HSPF
8.5
Cooling
24000
Heating
23200
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL21KLV-024-230

SEER2 19

AHRI number 217443172

SEER
19
EER
13
HSPF
8.5
Cooling
23600
Heating
24200
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-024-230

SEER2 18.75

AHRI number 217885196

SEER
18.75
EER
13.8
Cooling
23400
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-036-230

SEER2 18.75

AHRI number 217886103

SEER
18.75
EER
12.7
Cooling
35400
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-036-230

SEER2 18.75

AHRI number 217885998

SEER
18.75
EER
12.5
Cooling
34800
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-036-230

SEER2 18.75

AHRI number 217885889

SEER
18.75
EER
12.5
Cooling
34800
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-036-230

SEER2 18.75

AHRI number 217885762

SEER
18.75
EER
12.7
Cooling
35200
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-036-230

SEER2 18.75

AHRI number 217885730

SEER
18.75
EER
12.5
Cooling
34800
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL19KPV-024-230

SEER2 18.5

AHRI number 217446914

SEER
18.5
EER
12.6
HSPF
8.1
Cooling
23800
Heating
23800
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL19KPV-024-230

SEER2 18.5

AHRI number 217446855

SEER
18.5
EER
12.8
HSPF
8.5
Cooling
23800
Heating
24000
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL21KLV-024-230

SEER2 18.5

AHRI number 217443094

SEER
18.5
EER
12.5
HSPF
8.2
Cooling
23800
Heating
24600
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-024-230

SEER2 18.25

AHRI number 217885232

SEER
18.25
EER
13.4
Cooling
22600
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

EL22KCV-036-230

SEER2 18.25

AHRI number 217885692

SEER
18.25
EER
12.5
Cooling
34600
Refrigerant
R-454B

Adds missing pieces only. Items already in your cart are skipped.

Specifications

Specification Value
Manufacturer Lennox
SKU ML296UH070XV36BK
Product type Furnace
Furnace width 17.5"
Input (BTU/h) 66,000
AFUE (%) 96
Voltage 120
Phase 1
Frequency (Hz) 60
Electrical 120-1-60
Height (in) 33
Depth (in) 27.75
Shipping weight (lb) 138
Stages Two
Cabinet width (in) 17.5
Output (BTU/h) 62,000
Low-fire output (BTU/h) 41,000
Vent connection 2 in. intake / 2 in. exhaust (PVC)
Cabinet size letter B

Ordering

Detail Value
Lead time Ships from our Kansas City warehouse. Most in-stock items leave in 1 to 3 business days; special-order equipment is confirmed by phone before ship.
Freight note Ships residential freight (curbside). Will-call available at our Kansas City warehouse. Call (913) 364-0070 for liftgate, scheduling, or commercial delivery.

Documents

Spec sheet
